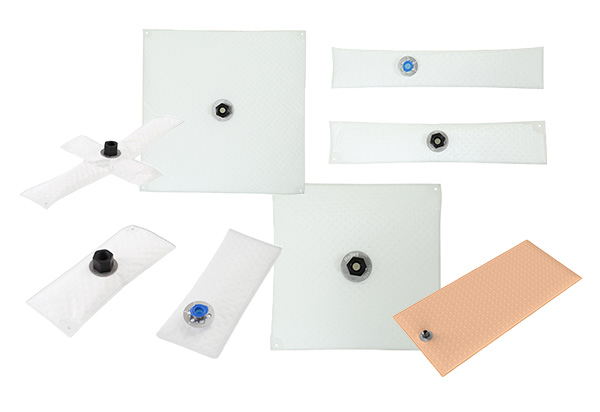

Holley Hydramat Fuel Pick-Up Filter

• Holley Hydramat Fuel Pick-Up Filter is engineered to maintain steady fuel delivery during hard launches, aggressive cornering, steep climbs, and low-fuel situations
• Employs advanced surface-tension and wicking technology to pull fuel from virtually any portion of the tank or cell that the mat contacts
• Incorporates an internal micro-porous reservoir that closes off when exposed to air, helping minimize the introduction of air into the fuel system
• Reduces the need for sumps, surge tanks, or auxiliary pickup pumps, simplifying overall fuel system layout
• Acts as an integrated 15-micron pre-filter, often eliminating the requirement for a separate pre-pump filtration component

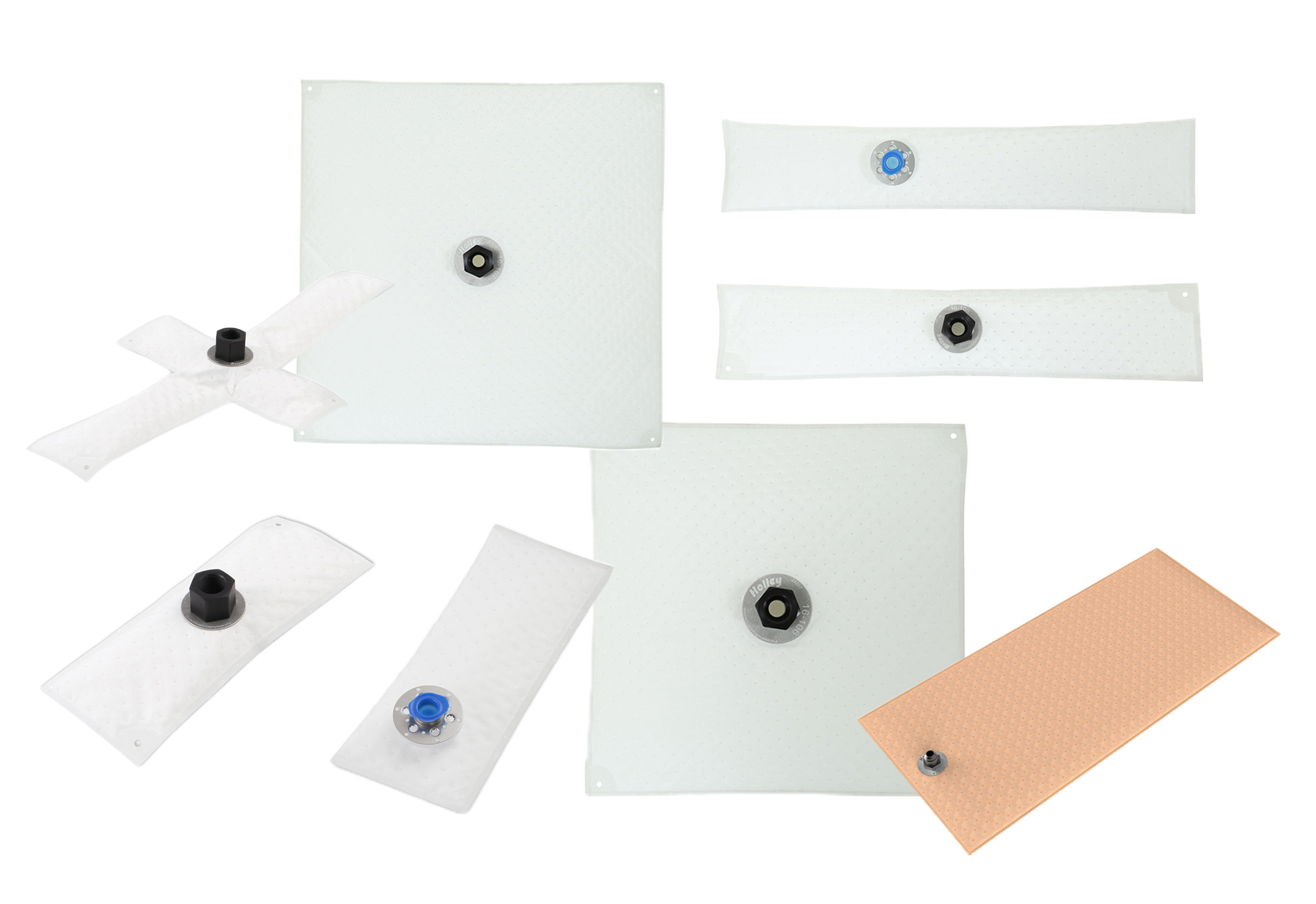

• Offered in various sizes, shapes, and outlet configurations; can be bent or compressed for installation and is compatible with gasoline, alcohol, ethanol, methanol, E85, and two-cycle blends up to 20:1 (not recommended for diesel fuel or most oils)
• Covered by a 90-Day Warranty

Aggressive launches, tight cornering, steep grades, and even running near empty can reveal the shortcomings of a conventional fuel pickup. When fuel moves away from the inlet, air can enter the system, causing hesitation or even engine shutdown at the worst time. For drivers who expect steady fuel delivery in demanding conditions, the Holley Hydramat Fuel Pick-Up Filter offers an innovative solution.

This pickup uses a specialized mat that relies on surface tension and capillary action to pull fuel from virtually any portion of the tank it contacts. Fuel is drawn through the material and retained in an internal reservoir, helping maintain a consistent supply to the pump. If part of the mat becomes exposed, the microscopic pores in that area effectively seal due to surface tension, redirecting fuel draw to sections that remain submerged. The result is improved resistance to air ingestion during acceleration, braking, hard cornering, climbing, or low fuel situations. Its design can reduce or even eliminate the need for external sumps, surge tanks, or additional lift pumps, simplifying system layout and potentially lowering overall cost. The mat also serves as a 15 micron pre filter, removing the need for a separate pre pump filter in many applications. Offered in numerous sizes, shapes, and outlet configurations, it can be folded or compressed to ease installation. It is compatible with gasoline, ethanol, methanol, E85, alcohol blends, and two cycle mixtures up to 20:1, but is not intended for use with diesel fuel or most oils.

Suitable for factory fuel tanks as well as racing fuel cells, this advanced pickup design helps maintain reliable engine performance in high demand street, track, and off road environments. Backed by a 90-Day Warranty.
