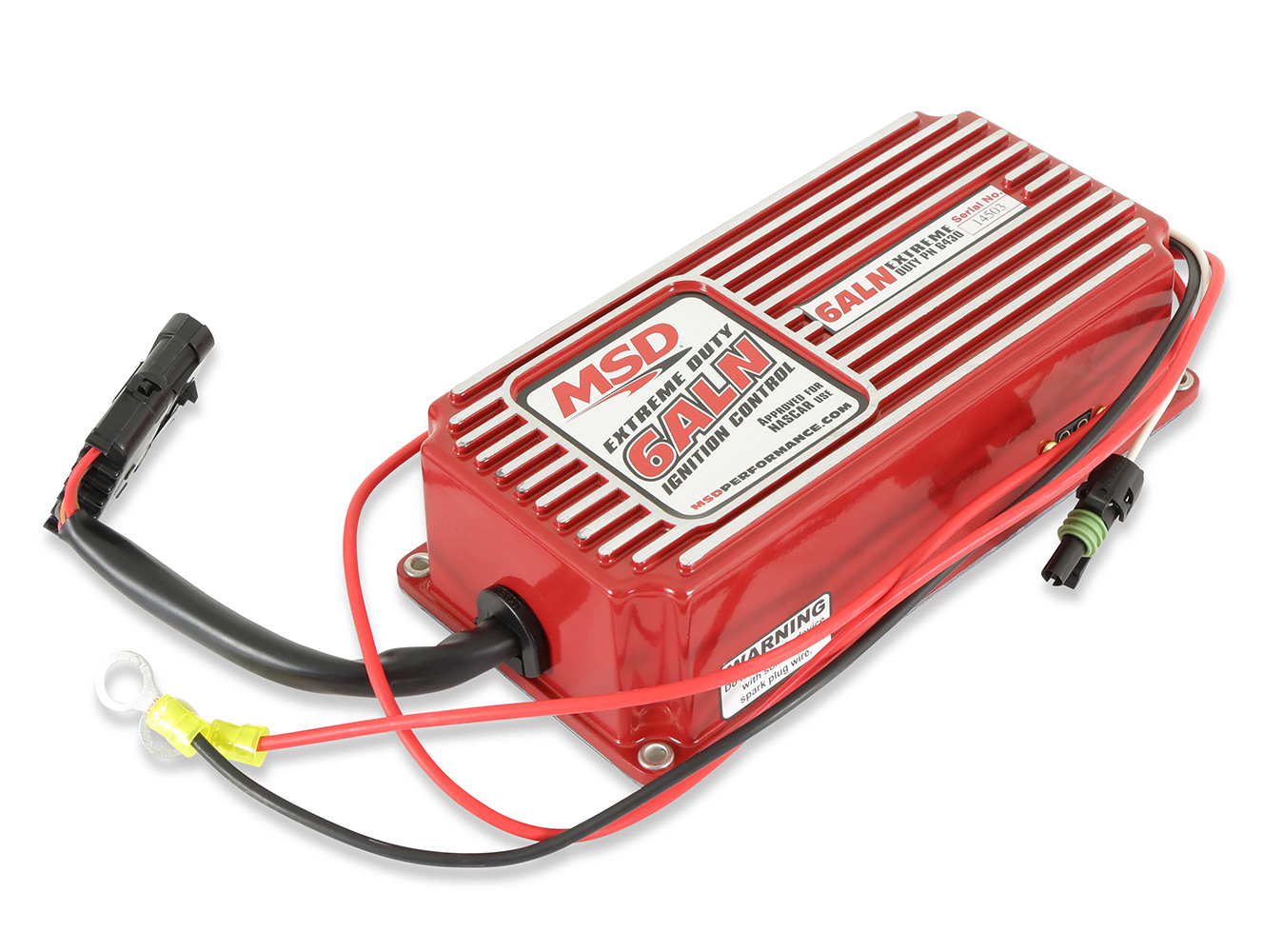

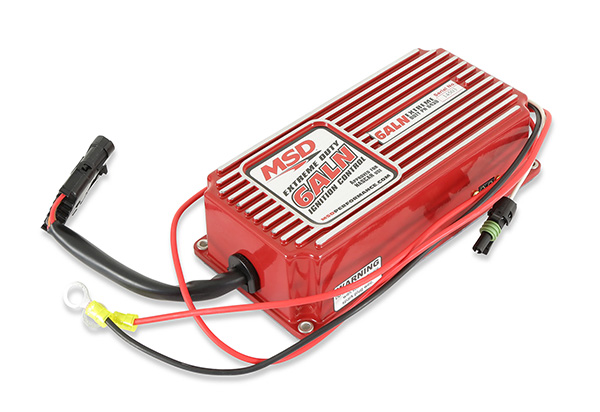

MSD 6ALN Ignition Control

• The MSD 6ALN Ignition Control is a NASCAR-engineered capacitive discharge ignition built for circle track racing and high RPM reliability

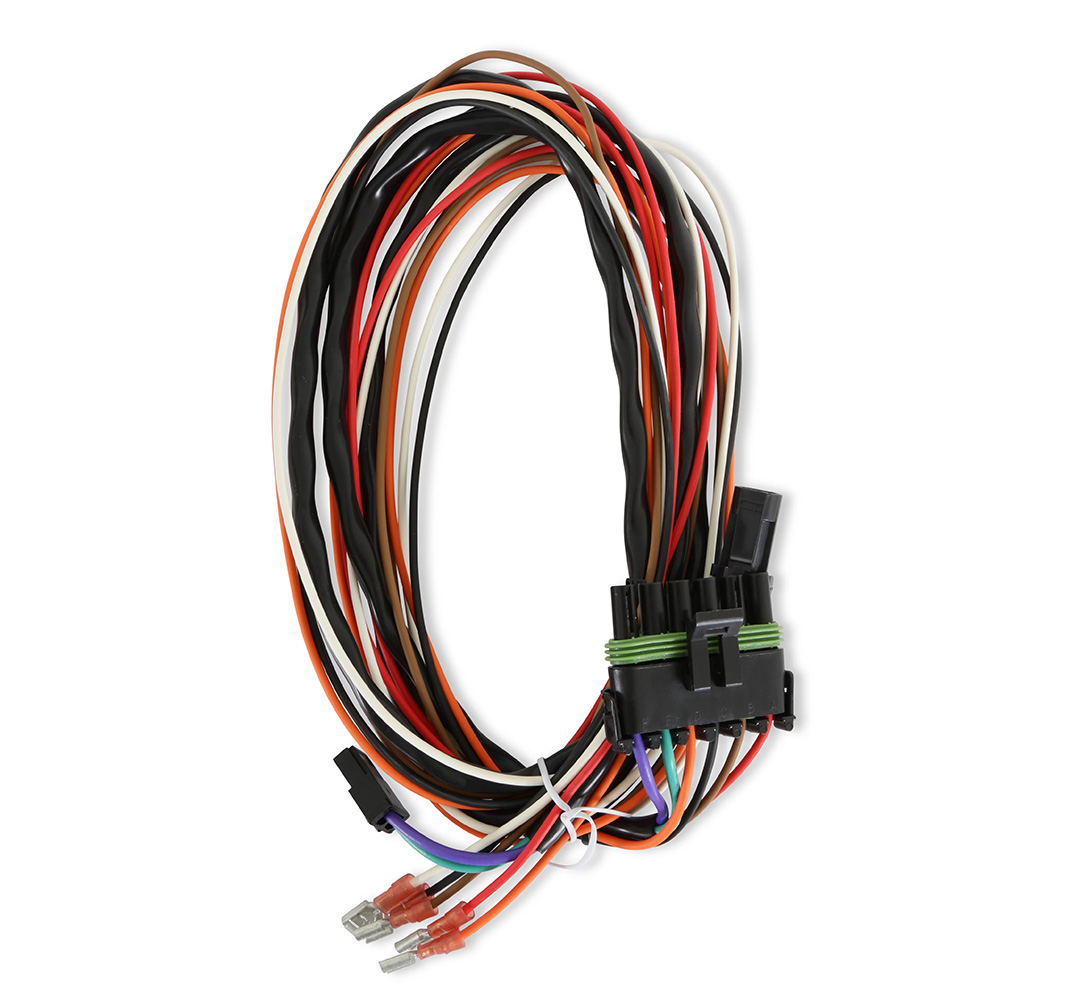

• Mandatory 6-Pin Weathertight connector meeting NASCAR rule 20-6.1 with sealed, positive locking connections to keep out dirt and moisture
• Multiple spark output with 110 millijoules per spark up to 15,000 RPM and sparks through 20 degrees of crankshaft rotation

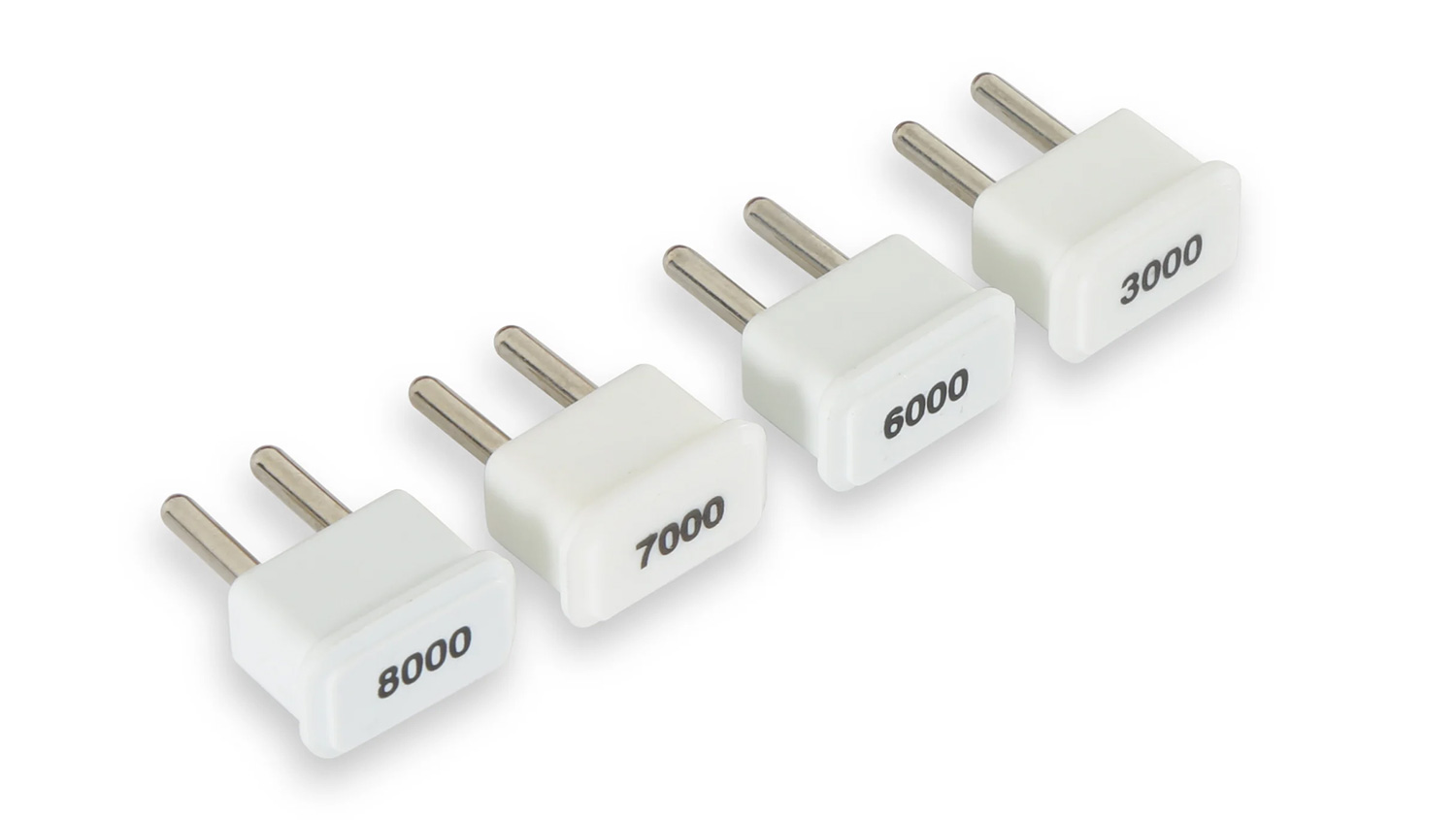

• Built-in Soft Touch Rev Control adjustable with included 3,000, 6,000, 7,000, and 8,000 RPM modules to prevent over-rev damage

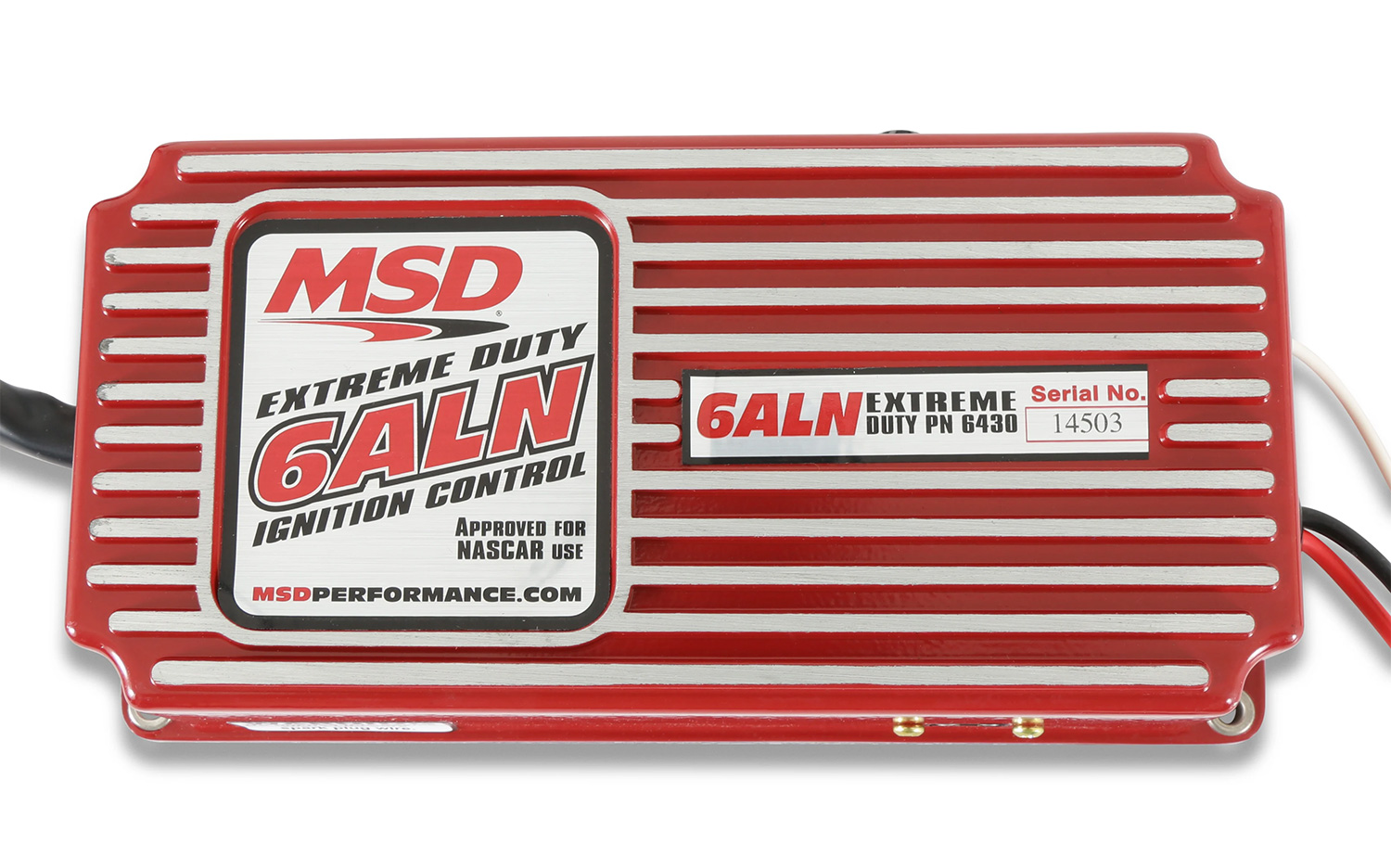

• Rugged cast aluminum housing with circuit board encased in clear two-part silicone elastomer and clear base plate for easy tech inspection
• Operates on 12 to 18 volt systems, delivers 470 primary volts to the coil, programmable for 4, 6, or 8 cylinders, accepts breaker points, amplifier, and magnetic pickup triggers
• Backed by a 1-Year Limited Warranty

When you're chasing every fraction of a second on race day, your ignition system has to meet both the rulebook and the demands of relentless RPM. Built with circle track competition in mind, this ignition control was originally engineered to satisfy NASCAR requirements, including the mandatory 6-Pin Weathertight connector specified under rule 20-6.1. The sealed connector features individual weather-tight seals and a secure locking design to keep out dirt and moisture, even in harsh racing conditions. Protected by a rugged cast aluminum housing and built to thrive in high vibration environments, this track-proven system is the MSD 6ALN Ignition Control.

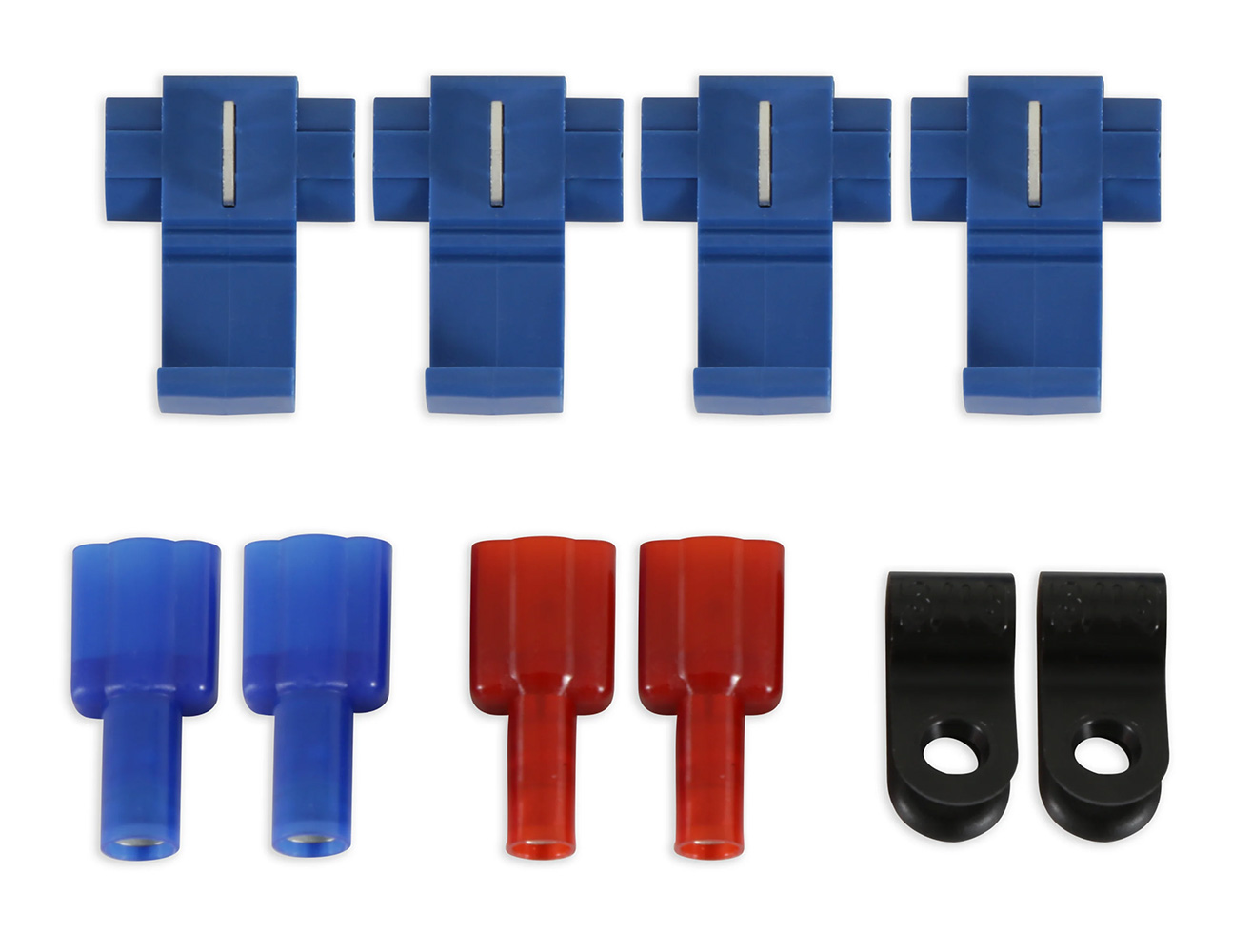

The MSD 6ALN Ignition Control delivers capacitive discharge multiple sparks with 110 millijoules of energy per spark up to 15,000 RPM and continues firing multiple sparks through 20 degrees of crankshaft rotation for strong, consistent combustion. Designed for 12 to 18 volt systems, it produces 470 primary volts to the coil and includes a built-in Soft Touch Rev Control that helps prevent engine damage from missed shifts or driveline failure, adjustable with supplied 3,000, 6,000, 7,000, and 8,000 RPM modules. The circuit board is encased in a clear two-part silicone elastomer and mounted within a durable cast aluminum housing for exceptional vibration resistance, while a clear plastic base plate simplifies tech inspection. With MIL-86A spec primary wiring featuring tinned conductors for secure crimps, compatibility with breaker points, amplifier, and magnetic pickup triggers, programmable 4, 6, or 8 cylinder operation by cutting red and blue wire loops, rubber shock mounts, and the required 6-Pin Weathertight connector, the MSD 6ALN Ignition Control is purpose-built for serious circle track racers.

Backed by a 1-Year Limited Warranty.
