MSD Billet Distributor

• The MSD Billet Distributor is a fully engineered HEI performance upgrade, incorporating race proven technology to deliver consistent spark output and accurate timing control
• Features a precision CNC machined billet aluminum housing and base for superior durability and a clean, high end appearance
• Equipped with a Digital HEI module and coil producing an 8.5 amp single spark inductive discharge capable of maintaining full spark energy up to 9,000 RPM
• Includes an adjustable mechanical advance system with TIG welded components, nylon wear pads, and QPQ coated chrome moly weights and advance plate to minimize friction
• Supplied with three advance spring sets and four stop bushings, enabling up to 24 possible timing curve combinations, plus the ability to lock out mechanical advance for competition use
• Incorporates a vacuum advance canister to support fuel efficiency with lockout option, along with a polished QPQ treated shaft, sealed ball bearing, and dedicated oil passage for improved lubrication
• Protected by a 1-Year Warranty

Whether you are fine tuning a classic V8, building a street rod, or preparing a circle track car for competition, a dependable ignition system is critical to unlocking consistent performance. Strong spark output, straightforward wiring, and precise timing control all play a role in keeping your engine responsive under demanding conditions. Developed as a comprehensive HEI style performance upgrade, the MSD Billet Distributor combines race inspired engineering with practical street functionality.

At its core, the MSD Billet Distributor features a CNC machined billet aluminum housing and base that provide both durability and a clean, high quality appearance. It comes equipped with a Digital HEI Module and matching MSD HEI Coil, including an 8.5 amp single spark inductive discharge module (PN 83647) and HEI Coil (PN 8225). This combination delivers full spark energy up to 9,000 RPM while enhancing dwell consistency and timing accuracy. The centrifugal advance assembly is TIG welded to the distributor shaft and incorporates staked and welded weight pins, nylon guide pads for smooth movement, and fine blanked chrome moly steel weights and advance plate treated with a QPQ coating to minimize friction. Included are three spring sets and four stop bushings, allowing up to 24 potential timing curve combinations. For racing applications, the mechanical advance can be locked out, and the vacuum advance canister may also be disabled if desired.

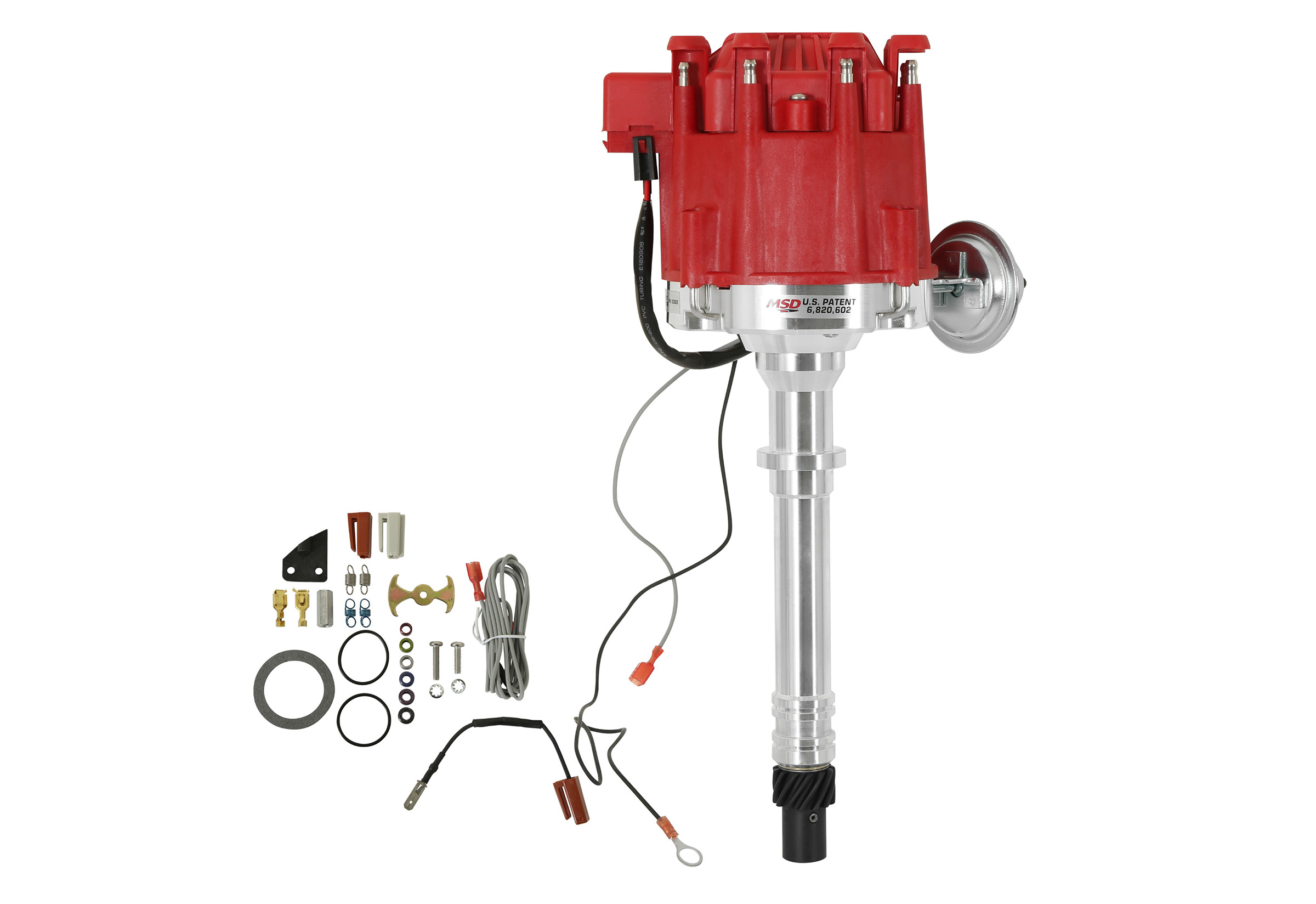

A polished steel shaft treated with QPQ coating rides on a sealed ball bearing for stability, while a dedicated oil passage improves lubrication to both the distributor and cam gear. The unit is supplied with a brass terminal cap, rotor, coil cover, and heavy duty gear for convenient installation. Part number 8365 is intended as a direct replacement for HEI distributors that utilize a 4 pin ignition module and carries CARB E.O. approval.

Combining robust construction, precise adjustability, and high energy output, this distributor offers a complete ignition solution for enthusiasts seeking performance, reliability, and clean integration in demanding applications. Backed by a 1-Year Warranty.
