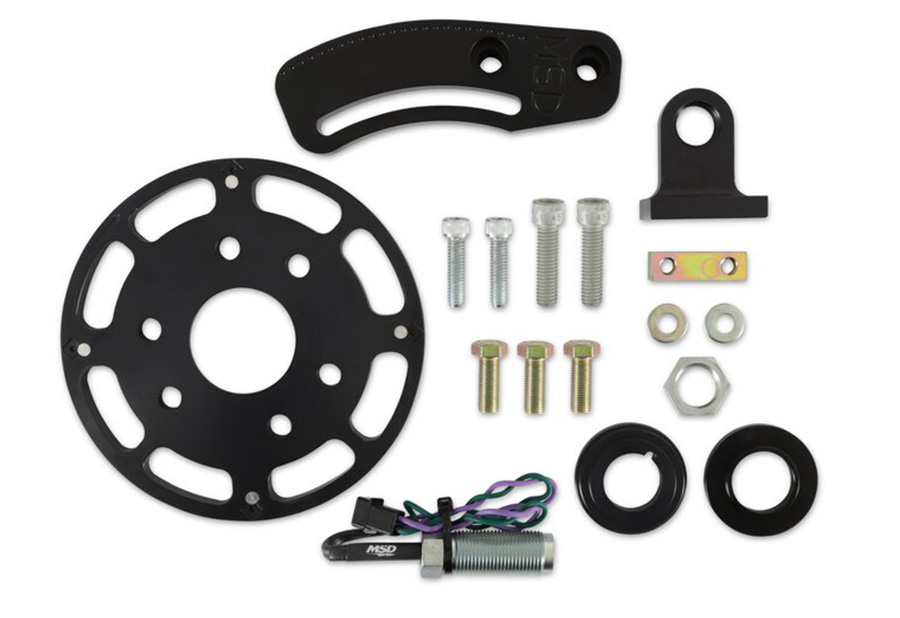

- The MSD Crank Trigger Wheel Kit features a Flying Magnet configuration engineered to provide exceptionally precise and dependable ignition reference signals for competition use
- Incorporates four high‑strength magnets embedded within a CNC machined billet aluminum trigger wheel to produce consistent and accurate signal output
- Utilizes a fixed, non‑magnetic pickup that helps prevent false triggering caused by nearby metal components or engine vibration
- Supplied with a CNC machined two‑piece aluminum mounting bracket featuring slotted adjustment for fine tuning ignition timing
- Offers flexible mounting options for most driver‑ or passenger‑side setups, including spacers to accommodate standard mounts or .25‑inch motor plates
- Designed for compatibility with MSD 6, 7, and 8 Series Ignition systems as well as related MSD timing components
- Covered by a 1‑Year Warranty
In competitive racing, precise ignition timing plays a major role in both engine durability and peak performance. Conventional crank trigger systems can sometimes be affected by vibration, debris, or nearby metal components, potentially leading to unstable signals. For high RPM applications where accuracy is essential, the MSD Crank Trigger Wheel Kit offers a dependable alternative.
This system utilizes a Flying Magnet configuration with four high strength magnets embedded in a billet aluminum trigger wheel. As the crankshaft turns, the magnets pass a fixed, non magnetic pickup that is not influenced by stray metal, fasteners, or vibration. The result is a clean, consistent trigger signal that can be more stable than traditional steel stud style trigger designs.
The kit includes a CNC machined, two piece aluminum mounting bracket that securely positions the pickup. Slotted adjustment points allow for a broad range of timing changes to suit various engine combinations. In many applications, the bracket may be installed on either the driver or passenger side of the engine, with certain small block Chrysler and small block Ford setups limited to a single mounting position. Included spacers accommodate standard engine mounts as well as combinations using a .25 inch motor plate. The system is designed for use with MSD 6, 7, and 8 Series Ignitions and is compatible with MSD timing accessories.
Built for demanding racing environments, this crank trigger kit delivers accurate ignition reference signals for improved consistency and engine protection. It is engineered for performance focused applications where timing precision is critical. Backed by a 1-Year Warranty.
