- MSD Digital 6 Offroad Ignition Control is built to provide dependable spark energy and engine safeguards in extreme offroad conditions
- Delivers a series of sparks under 3,000 RPM on V8 engines for smoother low-speed operation and more complete combustion
- Transitions to a high-output capacitive discharge spark above 3,000 RPM for sustained high RPM power
- Advanced rev limiter designed to help prevent engine damage from over-rev situations on the trail

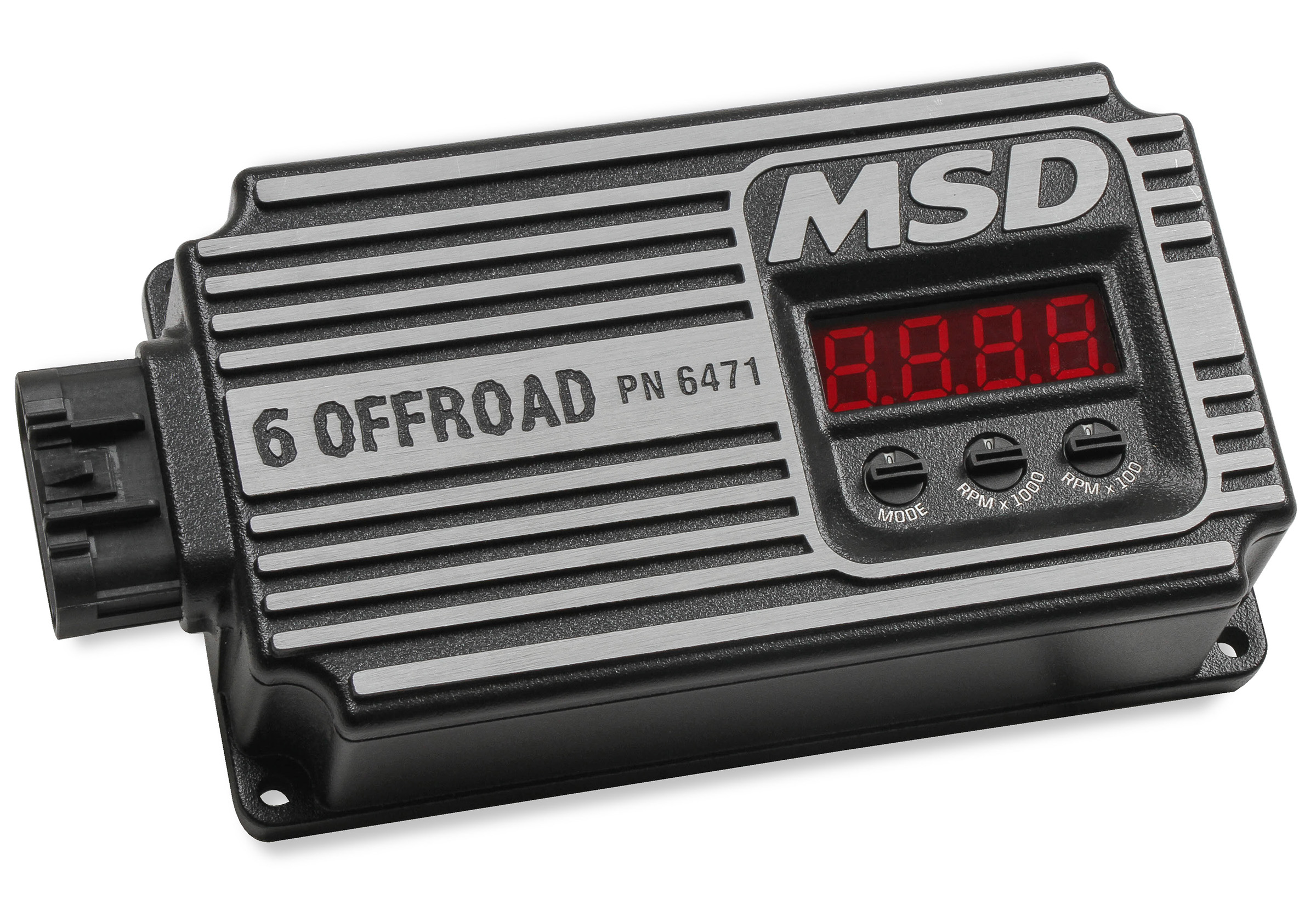

- Integrated LED screen displays rev limit setting, peak RPM, cylinder selection, battery voltage, and tachometer function
- Durable fully sealed housing with low current draw, compatible with 4, 6, and 8 cylinder engines running on 6 to 18 volts
- Covered by a Manufacturer's Limited 1 Year Warranty
From slow, technical rock sections to wide open stretches of desert, your ignition system has to respond instantly and hold steady through punishing conditions. Crawling at low RPM requires smooth throttle control and complete combustion, while high-speed runs demand a strong, consistent spark that will not break up when you lean into the pedal. Add in unpredictable traction and harsh vibration, and reliability becomes just as important as raw performance. That is where the MSD Digital 6 Offroad Ignition Control proves its worth.
Engineered for rugged terrain, the MSD Digital 6 Offroad Ignition Control provides multiple sparks below 3,000 RPM on V8 engines to promote clean idle and sharp throttle response, then switches to a powerful capacitive discharge spark above 3,000 RPM to maintain performance. Its advanced rev limiter helps guard against engine damage caused by over-rev situations, and the integrated LED screen displays rev limit, peak RPM, cylinder selection, start retard setting, battery voltage, or live tach readings. Three rotary dials allow quick adjustment of rev limit, cylinder select, and start retard in 0, 10, or 20 degree increments.

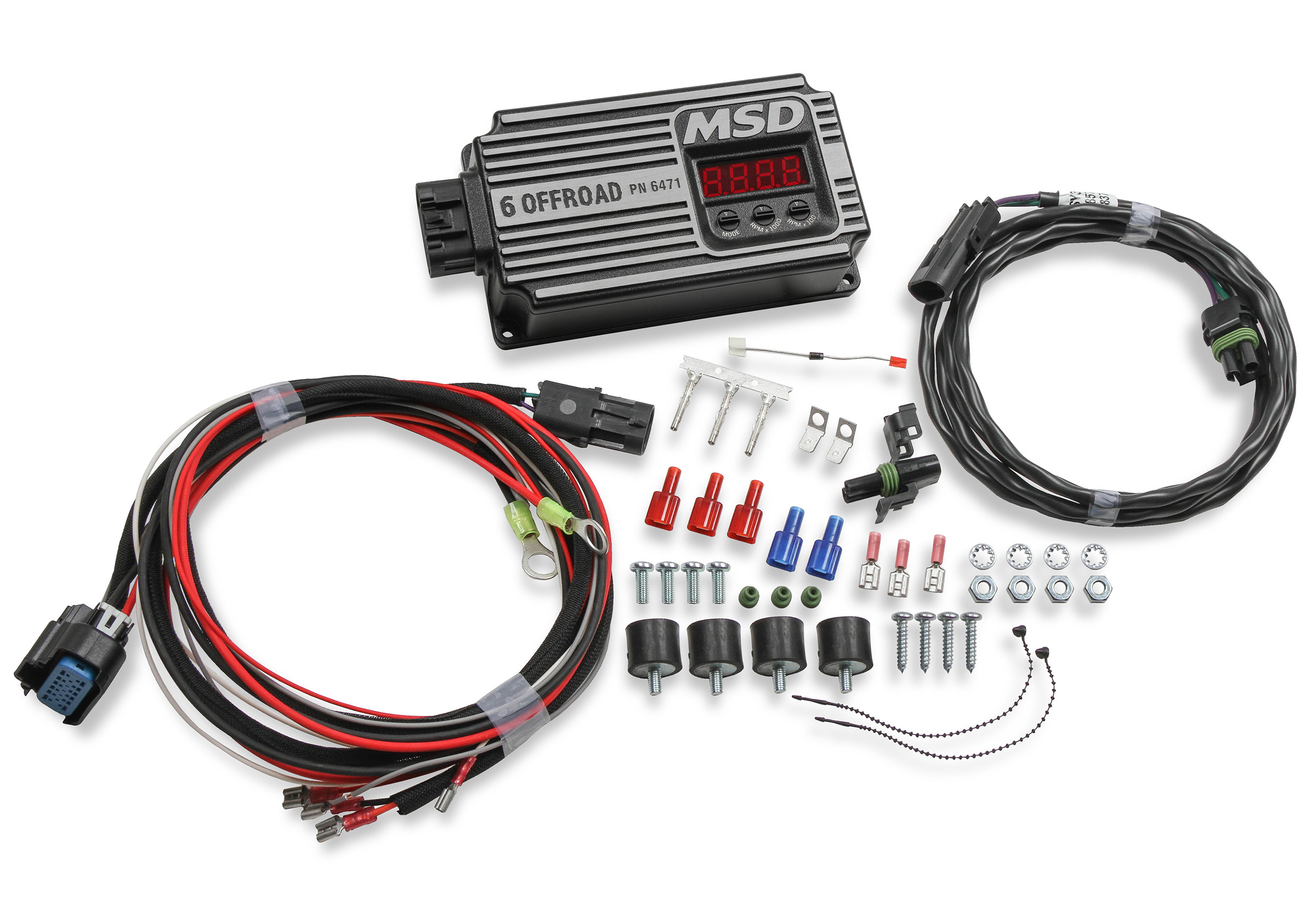

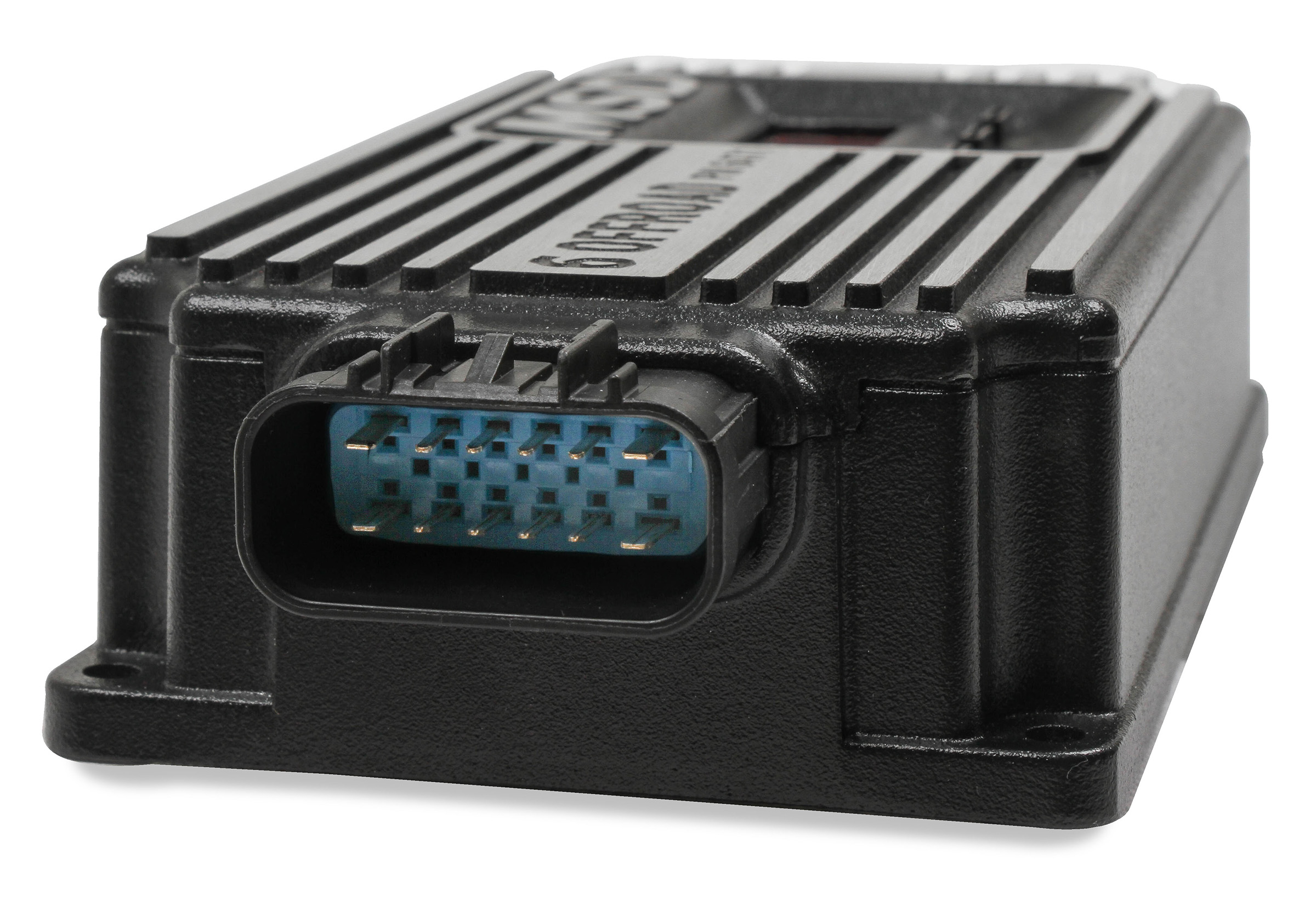

The fully potted housing resists vibration and moisture, delivers full spark energy down to 6 volts, supports 4, 6, and 8 cylinder engines, and operates efficiently with low current draw. Measuring 7.89 inches long, 4 inches wide, and 1.87 inches high, this surface-mount ignition box weighs about 2.5 pounds, includes mounting hardware, and is approved for use on uncontrolled, non-emissions-controlled vehicles.
Backed by a 1-Year Limited Warranty.
