- The MSD Ignition Control delivers sophisticated, fully programmable timing control tailored for LS swap projects and crate engine combinations in both naturally aspirated and forced induction setups
- Features an integrated 2.5 Bar MAP sensor that allows ignition timing to be advanced or retarded according to manifold pressure changes
- Supports 24x/1x and 58x/4x crank and cam signal arrangements with automatic detection of the reluctor pattern for simplified setup
- Includes six factory timing maps, three user‑definable 3D tables, and one selectable timing curve, all adjustable via a built‑in rotary selector
- Can be programmed using MSD View software while still offering standalone functionality for basic operation without a PC connection
- Provides high‑speed data logging with 8MB of internal memory, idle timing adjustment, per‑cylinder timing trims, step retard control, launch retard, and both launch and maximum RPM limiters
- Covered by a 1‑Year Warranty
LS engine swaps and crate motor installations continue to power a wide range of street and race vehicles. As compression ratios increase and boost is introduced, precise ignition management becomes essential for achieving reliable, repeatable performance. The MSD Ignition Control is engineered to provide tuners and builders with expanded timing control for both naturally aspirated and forced induction LS combinations.

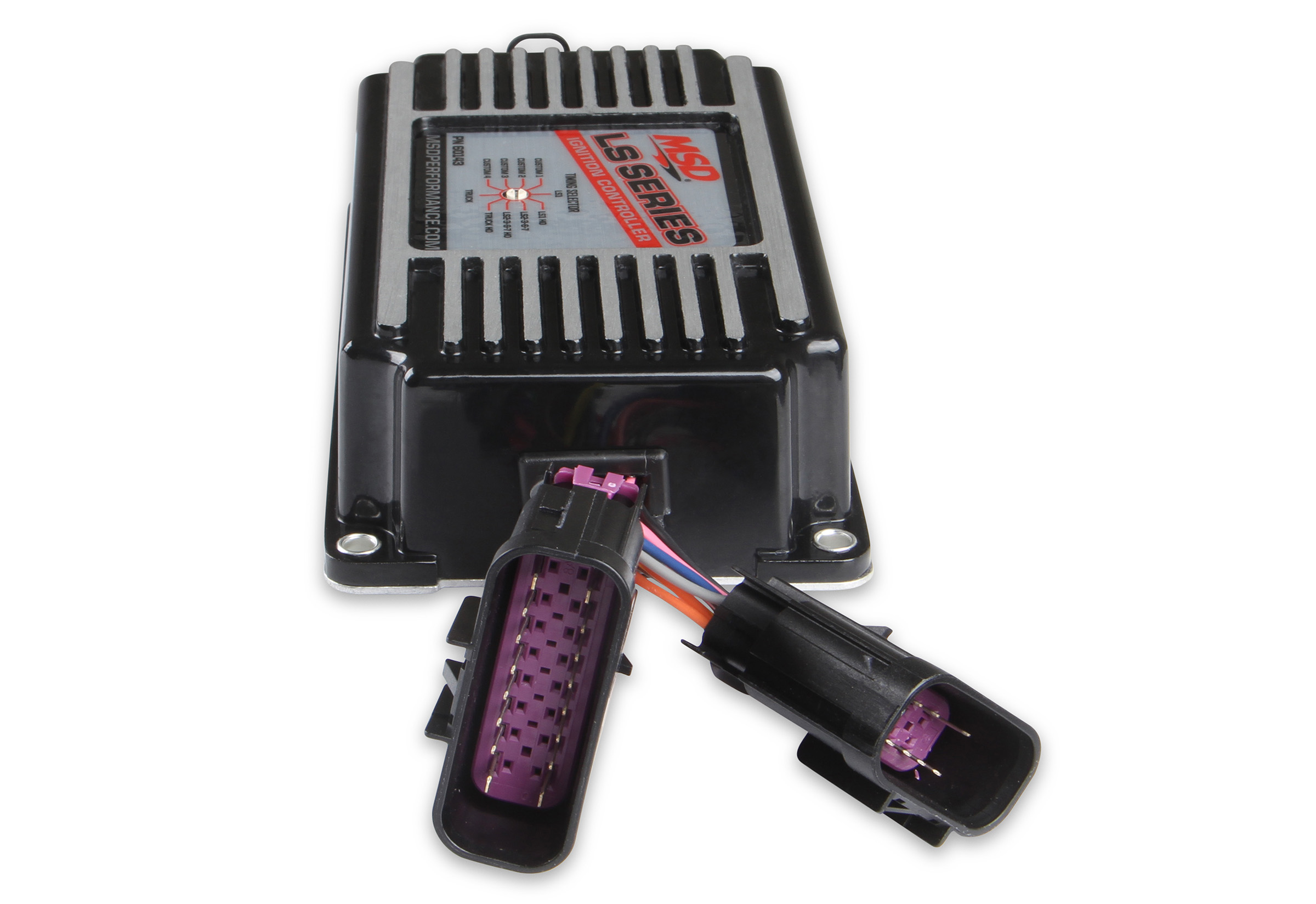

This controller incorporates an internal 2.5 Bar MAP sensor, enabling timing adjustments based on manifold pressure for boosted or non-boosted setups. The MSD 6014 LS Ignition Controller supports both 24x/1x and 58x/4x crank and cam configurations and automatically identifies the appropriate pattern from the reluctor wheel. It offers six preset timing maps intended for stock-style engines, along with three user-definable 3D timing tables and one adjustable timing curve that can be selected using the integrated rotary switch.

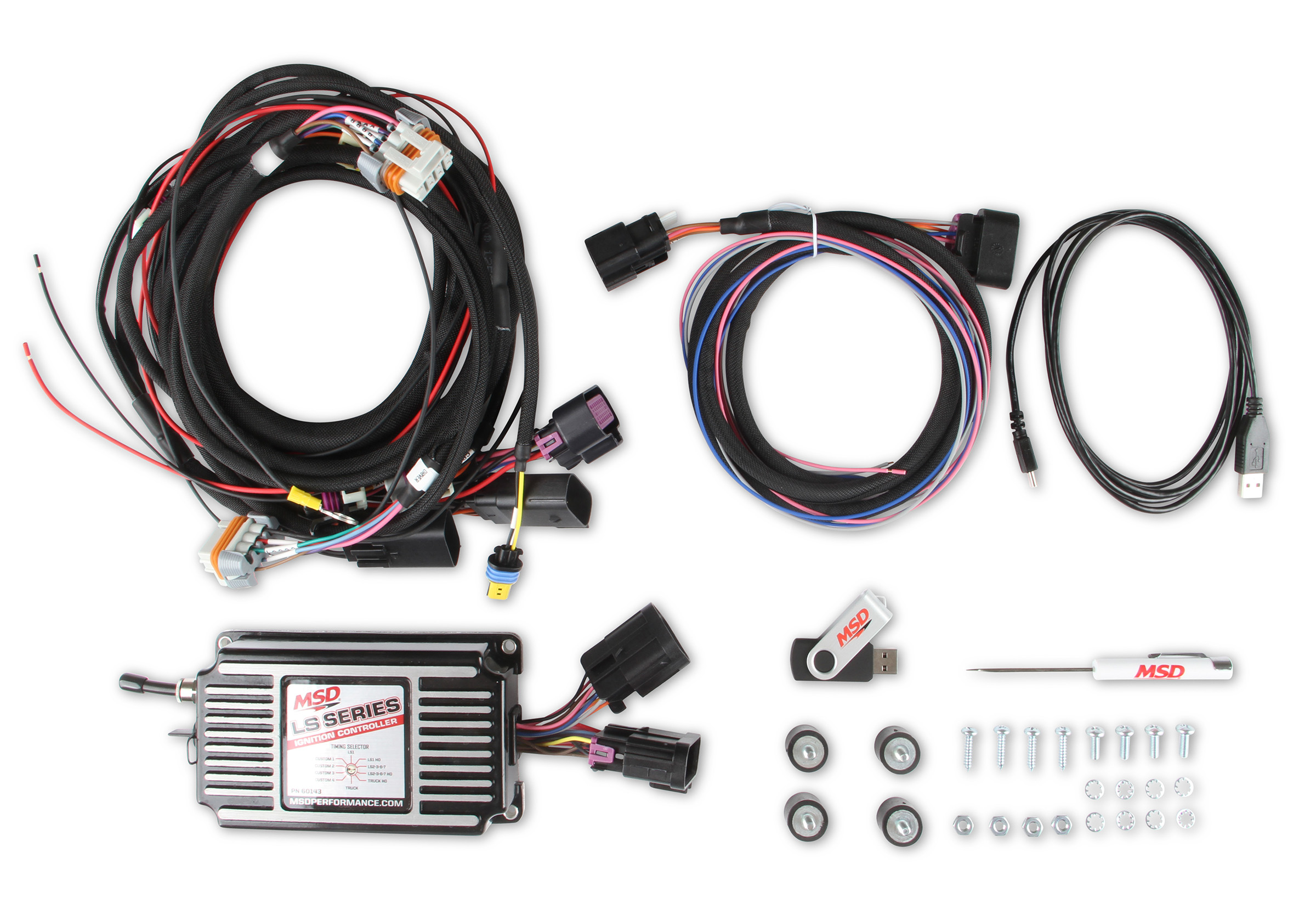

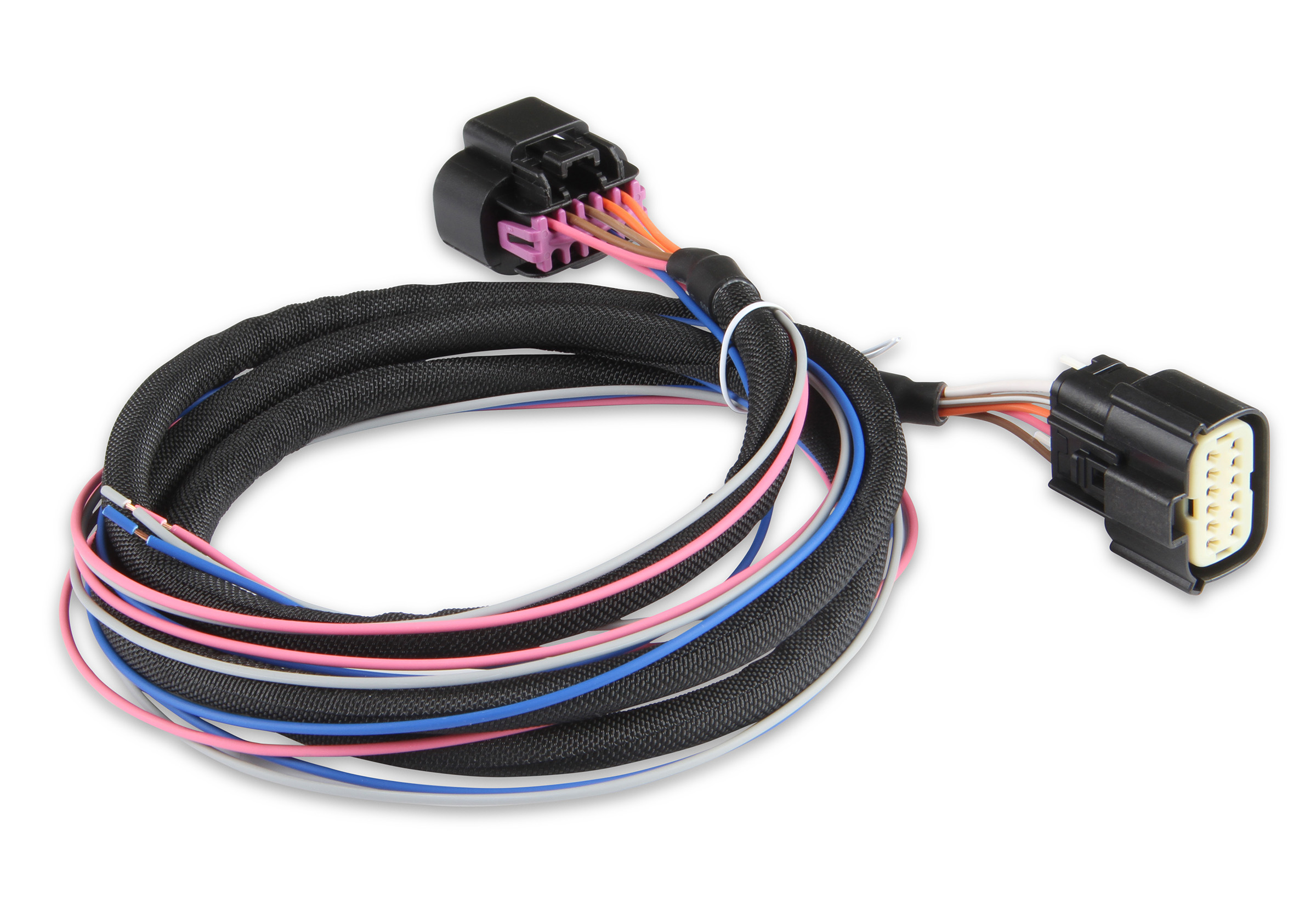

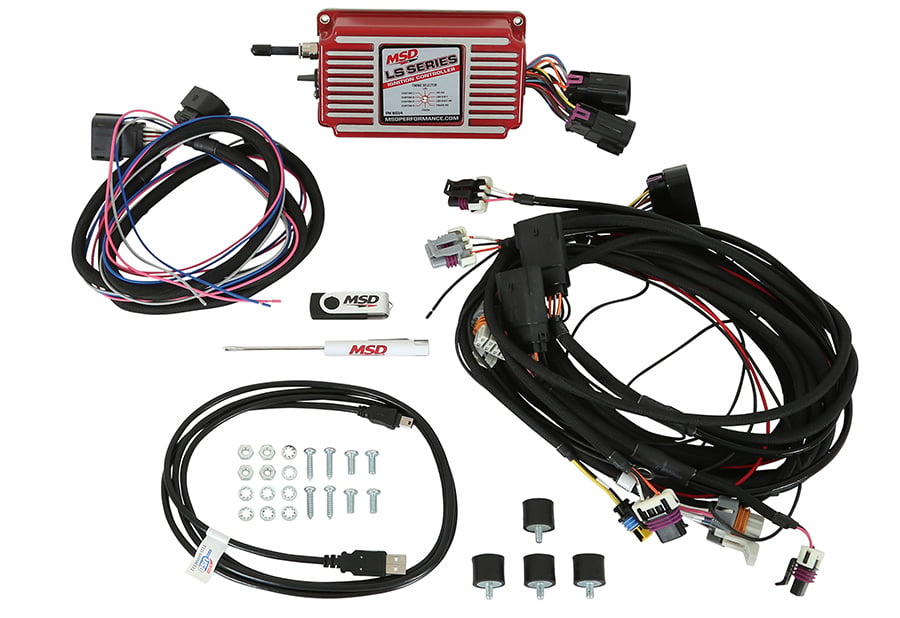

Custom timing tables can be configured through MSD View software, though basic operation and map selection can be performed without connecting to a PC. Additional functionality includes high speed data logging with 8MB of onboard memory, optional coolant temperature sensor input, idle timing adjustment, per-cylinder timing control, programmable step retard, launch retard capability, and both launch and maximum RPM limiters. The unit is compatible with MSD, Accel, and GM LS ignition coils and features fully sealed, direct plug-in connectors for streamlined installation. Available in red or black finishes.
Designed for performance enthusiasts who require detailed ignition control and tuning flexibility, this ignition system delivers advanced features in a compact, adaptable package suitable for a wide range of LS engine builds. Backed by a 1-Year Warranty.
