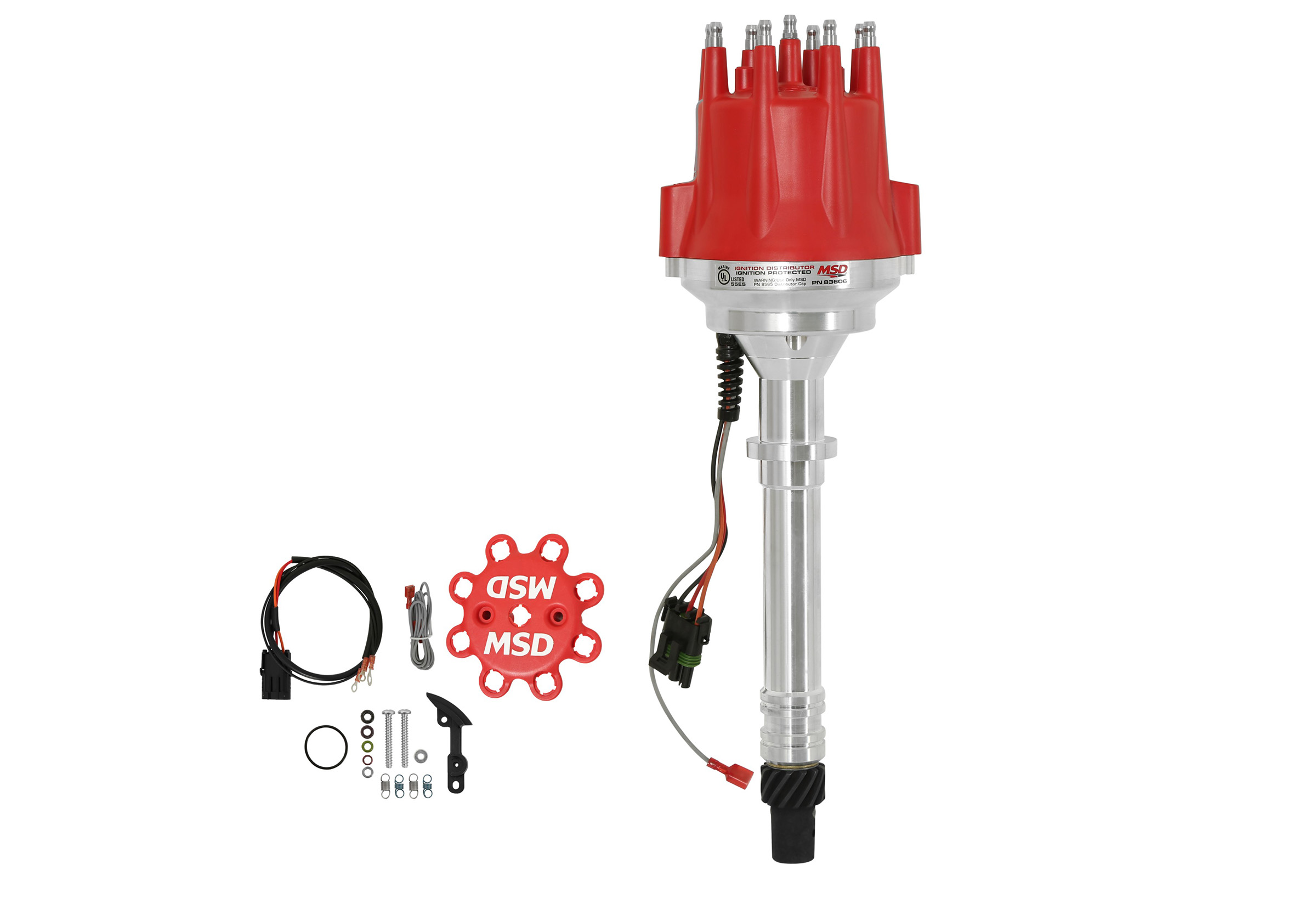

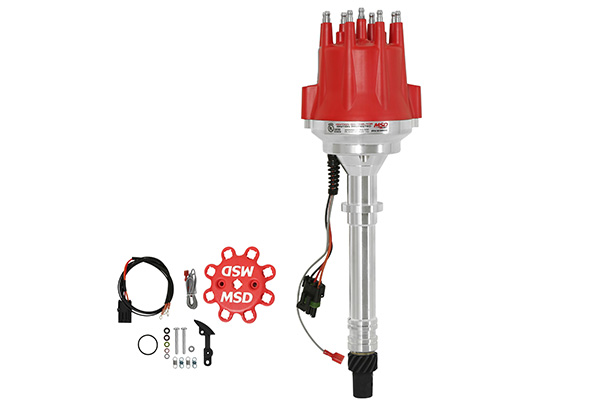

MSD Marine Distributor

• The MSD Marine Distributor is specifically engineered for Chevy V8 marine engines, providing dependable ignition performance designed to withstand demanding on‑water environments
• Constructed with a CNC machined 6061‑T6 billet aluminum housing and base for exceptional strength and a dense, zero‑porosity structure
• Features a bolt‑down HEI‑style cap equipped with dual flame arrestor vents and brass mesh screens to help guard against fuel vapor ignition
• Includes a weather sealed, positive locking connector with UL approval, meeting or exceeding U.S. Coast Guard marine ignition protection requirements
• Incorporates a maintenance free magnetic pickup and precision reluctor, along with a polished steel shaft treated with a QPQ finish, sealed ball bearing support, and extended sintered bushing for stability at higher RPM
• Offers an adjustable mechanical advance system with provided springs and stop bushings, staked and TIG welded weight pins, QPQ coated chrome moly components, and the ability to lock out advance when used with crank trigger setups
• Covered by a 1-Year Warranty

Marine engines operate in an environment far more demanding than typical street applications. Continuous vibration, moisture, salt air, and sustained high load operation can quickly compromise standard ignition components. For Chevy V8–based marine engines that require dependable spark delivery along with enhanced safety features, the MSD Marine Distributor is purpose built for the task.

Constructed specifically for marine use, this distributor features a CNC machined billet housing and base manufactured from 6061-T6 aluminum to provide strength and eliminate porosity. The bolt-down HEI style cap is securely fastened to the base, which incorporates dual flame arrestor vents fitted with brass screens to help reduce the risk of igniting fuel vapors within the engine compartment. A dedicated Weathertight connector ensures a secure, water resistant electrical connection. The unit is UL approved and designed to meet or exceed U.S. Coast Guard marine ignition protection requirements.

Internally, a polished steel shaft treated with a QPQ coating rides on a sealed ball bearing and extended sintered bushing to maintain stability at higher RPM. A maintenance free magnetic pickup and precision reluctor provide clean, consistent trigger signals across the operating range. The adjustable mechanical advance system includes supplied springs and stop bushings for curve tuning. Advance weight pins are staked and TIG welded to the plate for durability, while the fine blanked chrome moly steel advance components receive a QPQ coating to reduce friction. Nylon pads promote smooth advance operation. The mechanical advance can be locked out for crank trigger applications, and O ring seals may be added to modified blocks to help manage oil pressure. This distributor must be paired with an MSD Ignition Control and does not accommodate a vacuum advance canister. Available in black or red finishes.

Designed to withstand the challenges of marine environments while delivering accurate timing and consistent spark, this distributor offers a reliable ignition solution for high performance boating applications. Backed by a 1-Year Warranty.
