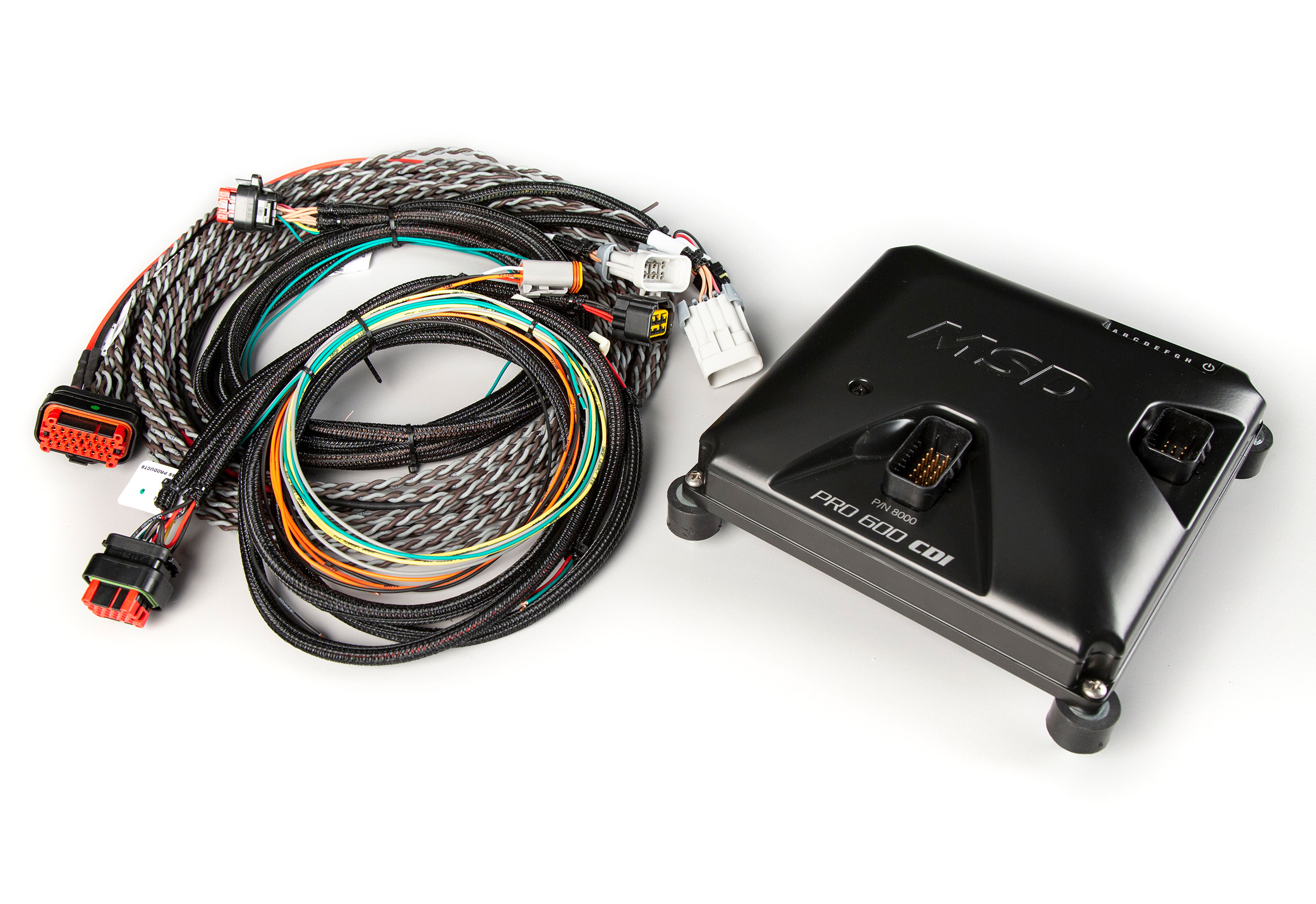

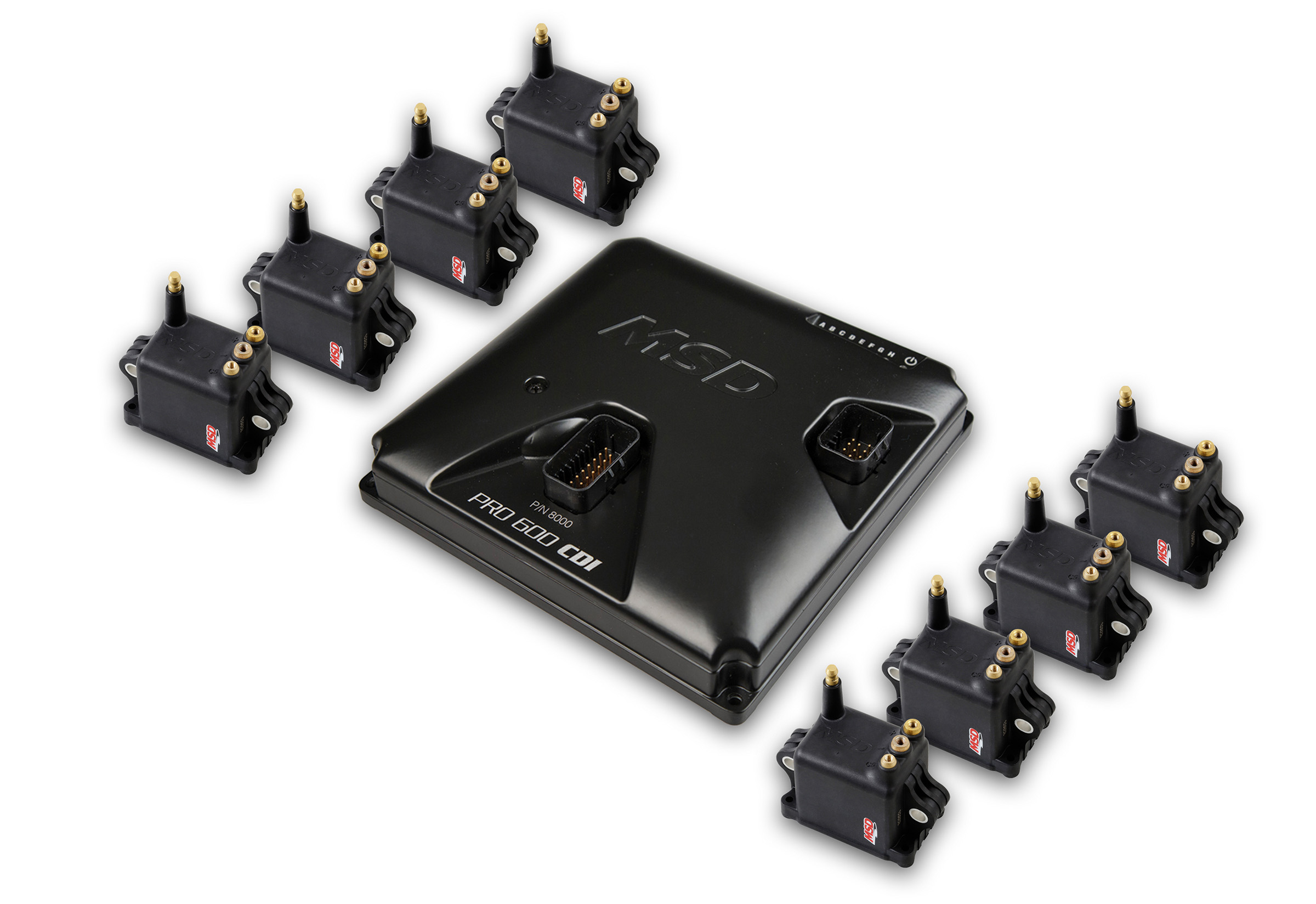

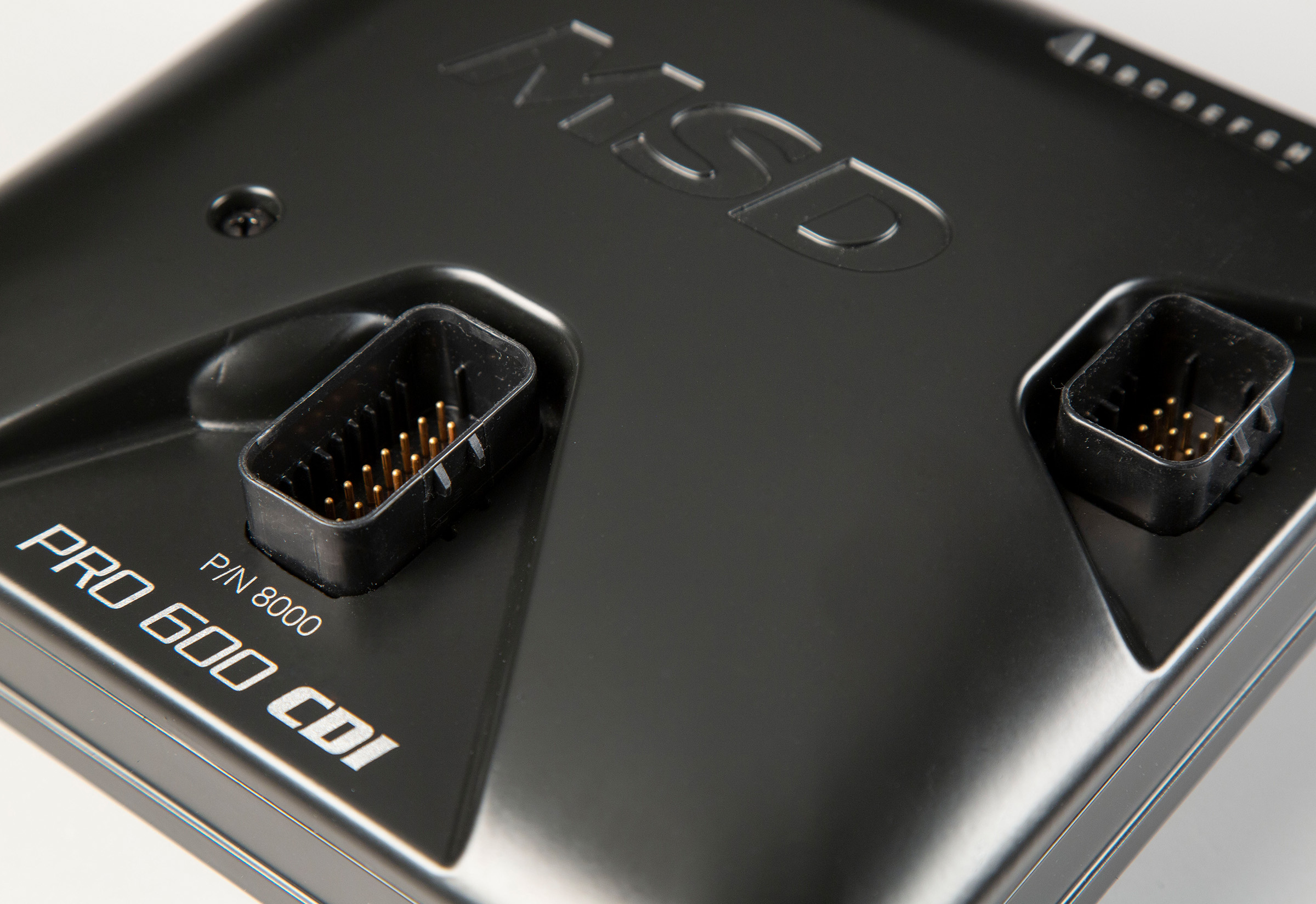

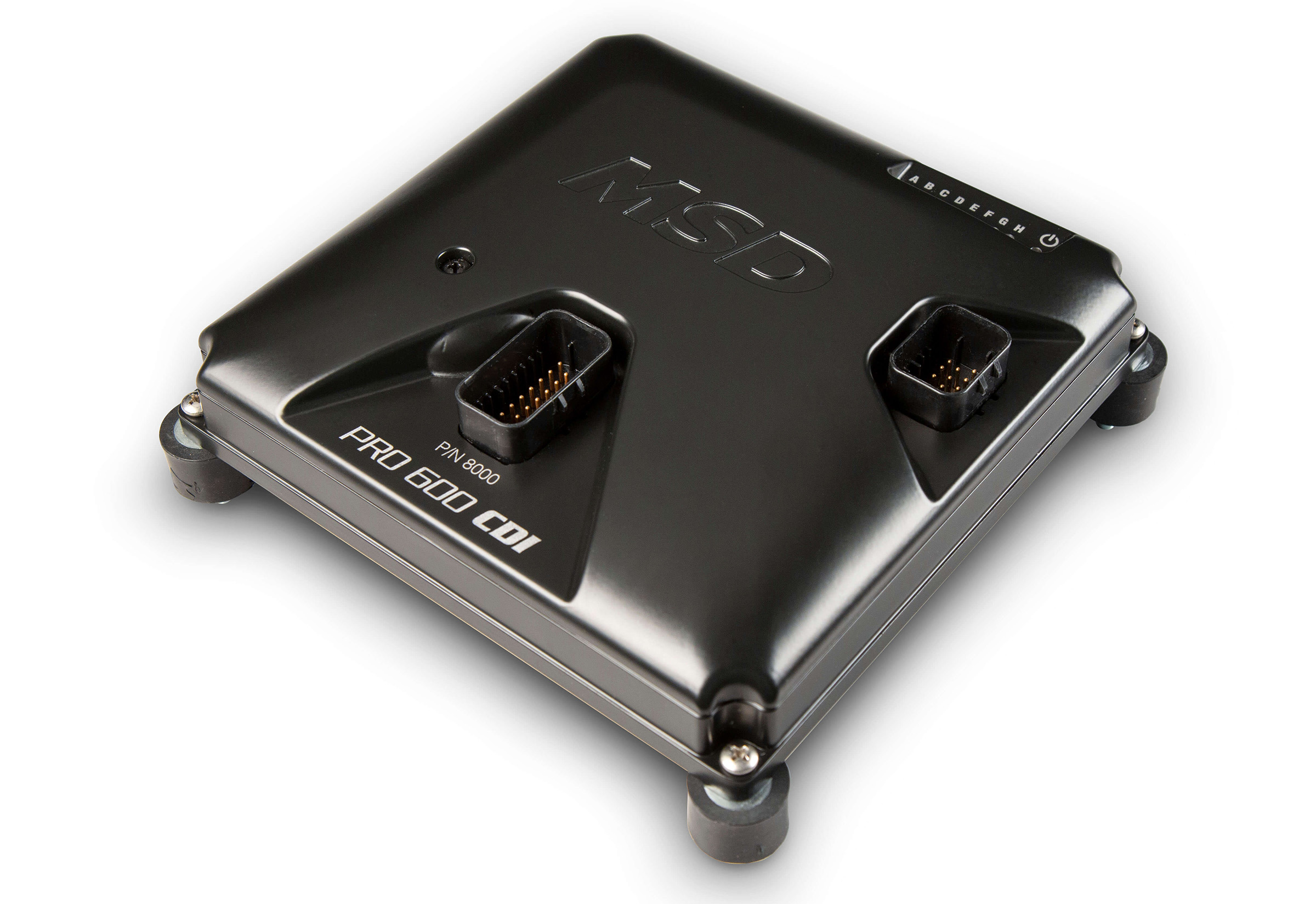

MSD Pro 600 CDI Ignition and Coil Kit

• The MSD Pro 600 CDI Ignition and Coil Kit is engineered to deliver exceptional spark intensity and maximum ignition performance for high‑boost, nitrous‑assisted, and extreme cylinder pressure engine combinations
• Provides eight coil‑near‑plug outputs capable of producing up to 680 millijoules of spark energy, with programmable settings allowing selection between 250–400 millijoules or the full 680 millijoule output
• Generates more than 50 kilovolts of output and is designed to sustain continuous 600 millijoule operation without excessive heat buildup
• The High Output configuration includes upgraded 8280 coils offering greater peak spark current, increased spark energy, and improved thermal management
• Designed for compatibility with Holley EFI, GM LS engine platforms, and most aftermarket EFI systems, while also allowing conversion from distributor‑based ignitions to coil‑near‑plug arrangements
• Incorporates reverse polarity and over‑temperature safeguards, diagnostic LED indicators, CAN communication for Holley EFI integration, and meets NHRA Pro Mod approval requirements
• Covered by a 1‑Year Warranty

High boost pressure and aggressive nitrous systems dramatically increase cylinder pressure, often pushing conventional inductive ignitions beyond their limits. To maintain combustion stability and protect engine components under these demanding conditions, racers and serious performance builders require significantly greater spark energy. The MSD Pro 600 CDI Ignition and Coil Kit is engineered for applications where maximum output and durability are essential.

This capacitive discharge system is designed for coil-near-plug configurations and provides eight ignition outputs capable of delivering up to 680 millijoules of spark energy. A programmable power setting allows users to select reduced output between 250 and 400 millijoules or enable the full 680 millijoule capacity via a dedicated activation wire or compatible software. When paired with recommended MSD coils, the system can generate more than 50 kilovolts of output while sustaining continuous 600 millijoule operation without overheating concerns.

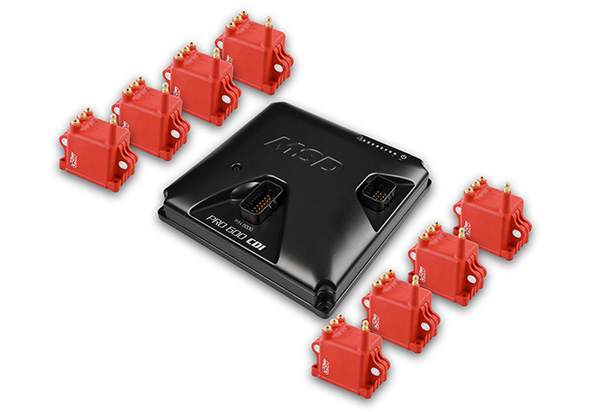

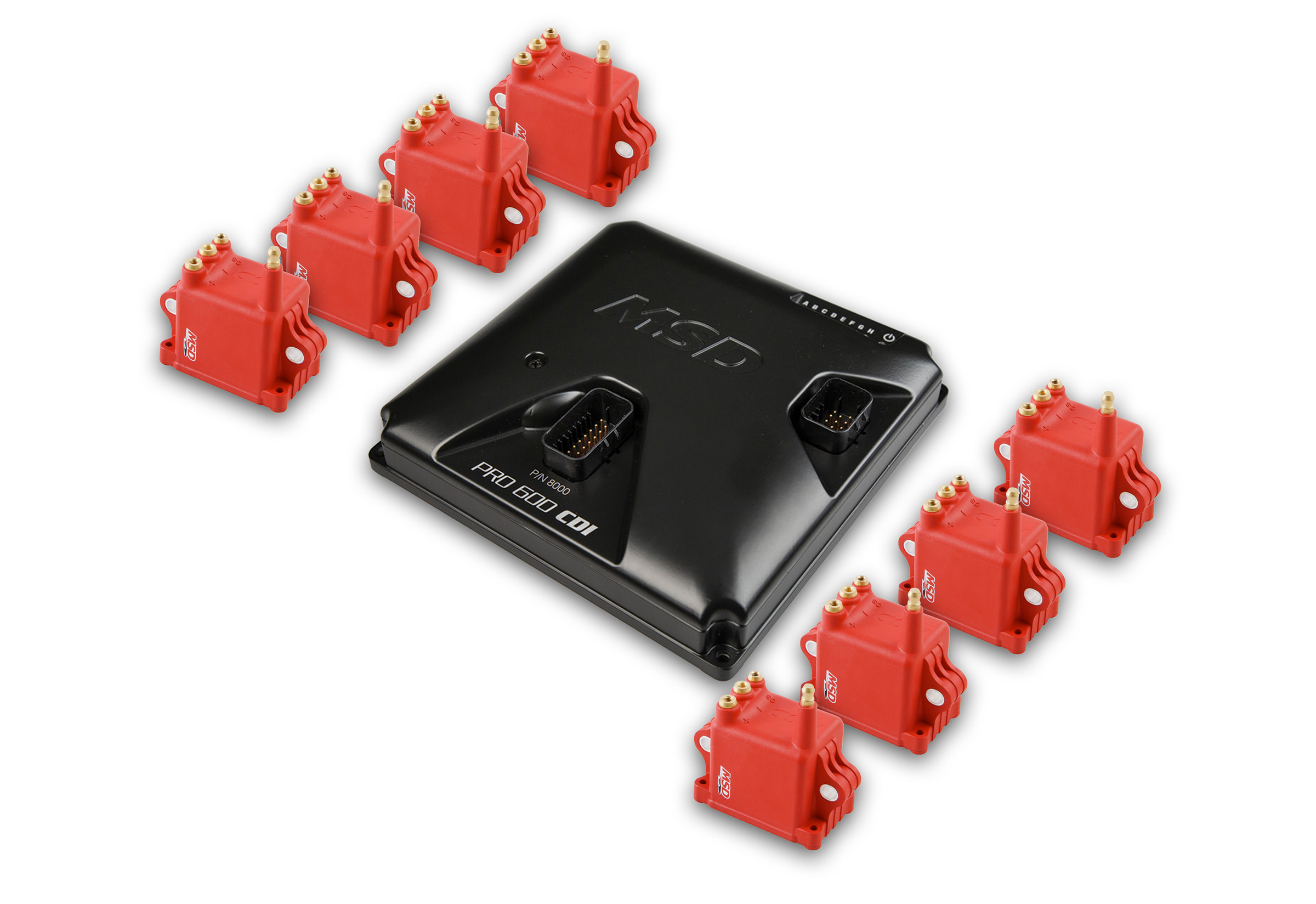

The High Output version includes MSD 8280 coils, offered in red or black, featuring enhanced peak spark current, increased overall spark energy, and improved thermal efficiency. The Pro 600 is compatible with Holley EFI systems, GM LS platforms, and many other EFI-controlled engines. It can also be configured to convert certain distributor-based systems into coil-near-plug setups.

Protective features include reverse battery protection, over-temperature safeguards, and integrated diagnostic LEDs capable of identifying individual coil faults. The system can operate with as little as 6 volts during cranking, requires a minimum of 12 volts for full 600 millijoule output, and supports up to 22 volts maximum input. At 16 volts and 600 millijoules, current draw is approximately 3 amps per 1,000 RPM. Spark duration exceeds 300 microseconds, and the unit uses high-efficiency alternating current power delivery. Supplied wiring harnesses, compatibility with both 5-volt and 12-volt drivers, CAN-based integration with Holley EFI, and NHRA Pro Mod approval further position this system for extreme racing environments.

Developed for high cylinder pressure combinations that demand exceptional ignition performance, this ignition and coil package delivers substantial spark energy, advanced system protection, and flexible integration with modern EFI platforms. Backed by a 1-Year Warranty.
