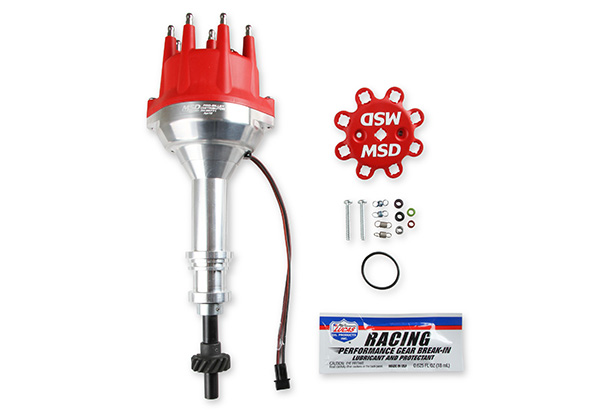

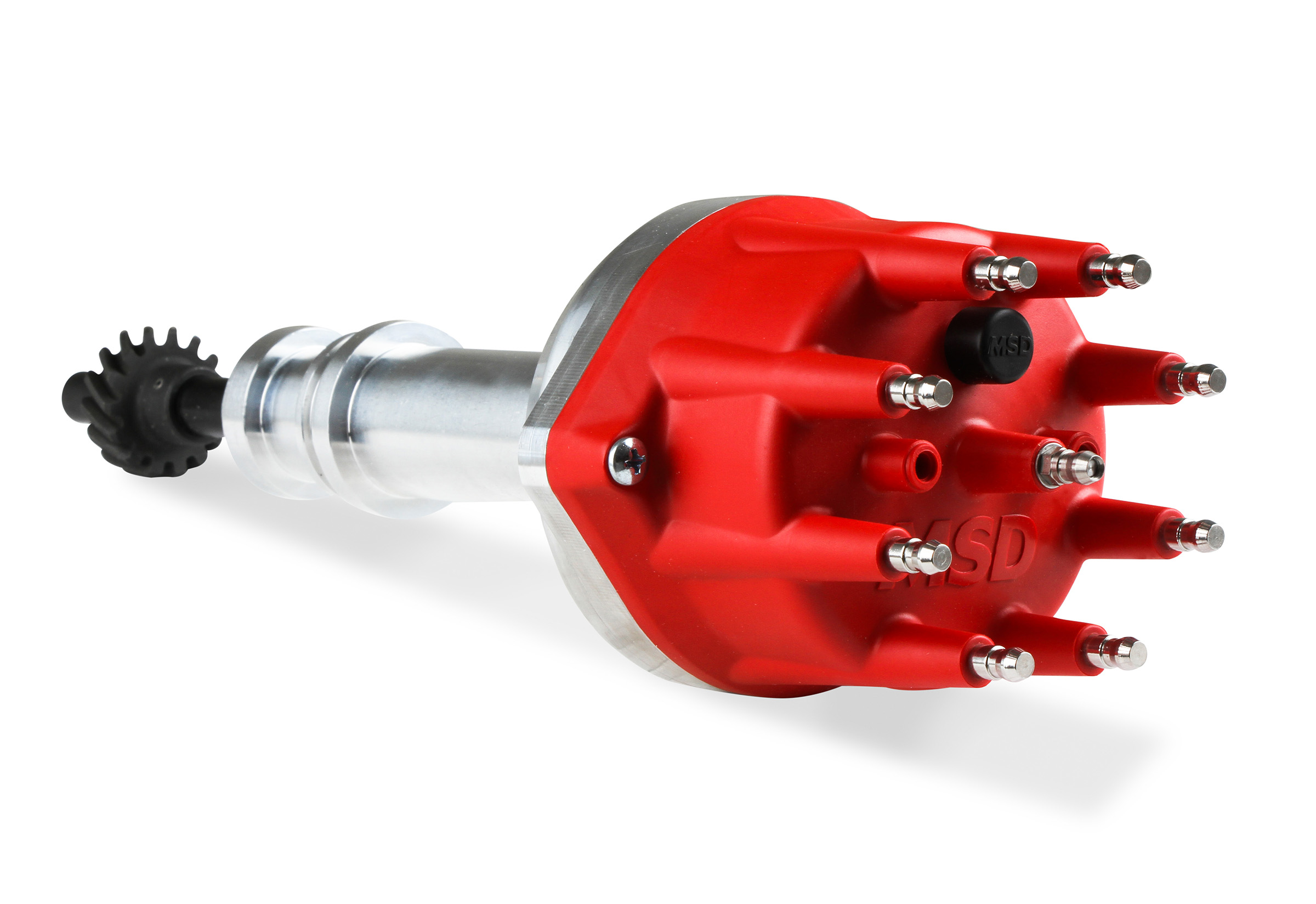

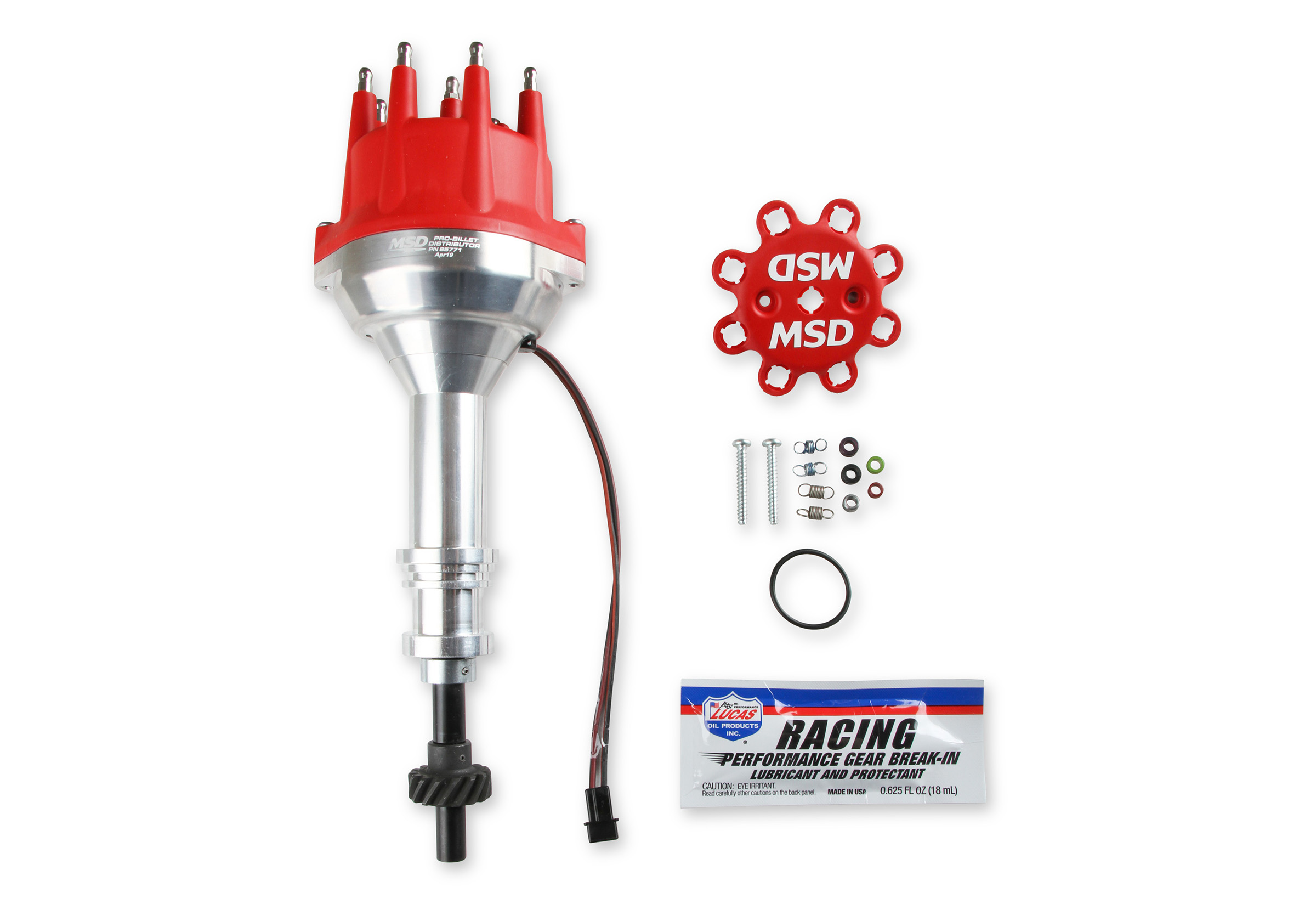

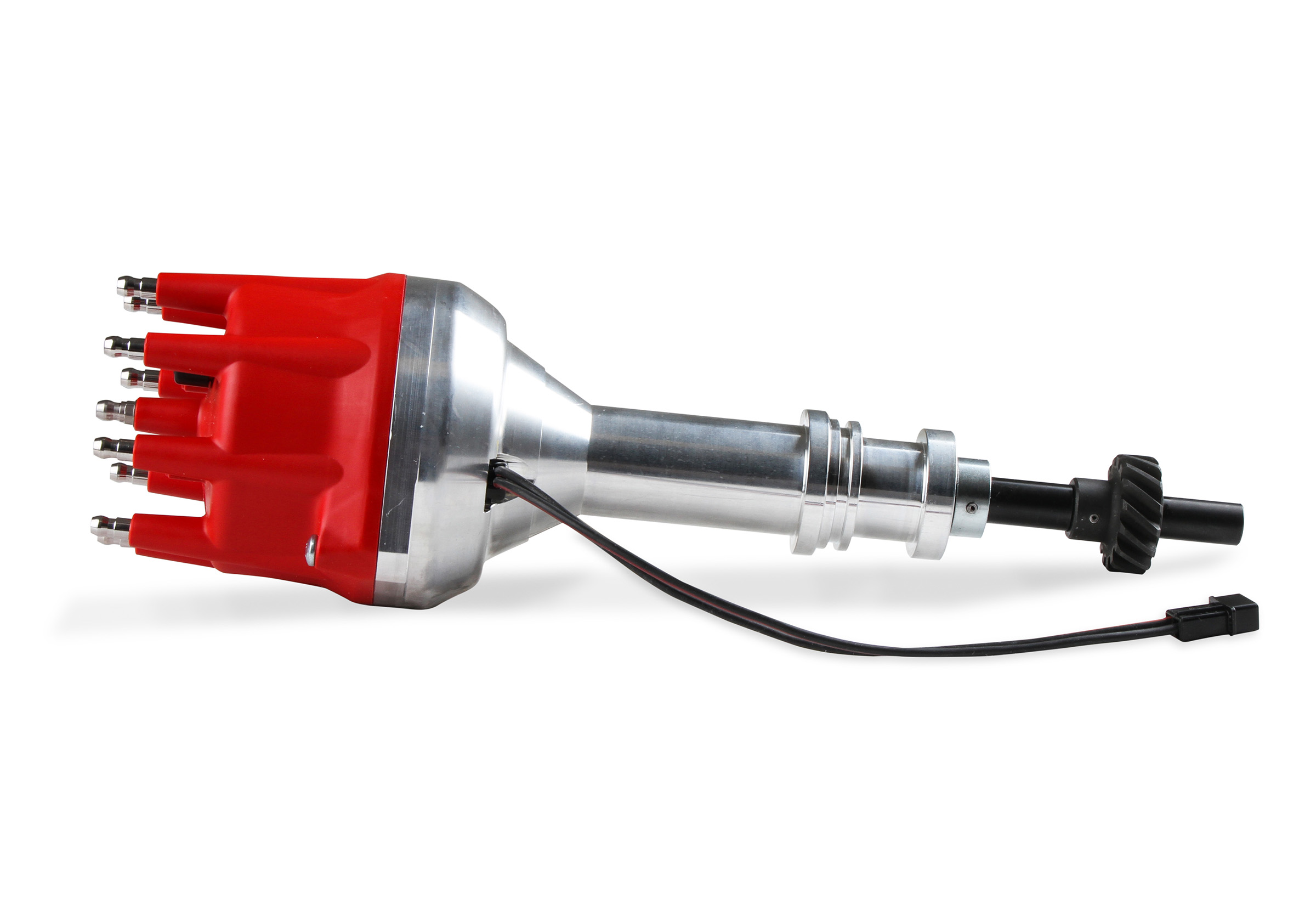

MSD Pro-Billet Distributor

• The MSD Pro‑Billet Distributor is a competition‑focused billet aluminum unit designed for locked‑out timing setups and precise ignition triggering in high‑performance race engines
• Features a CNC‑machined billet aluminum housing with no mechanical advance mechanism, making it ideal for dedicated racing applications
• Built with an oversized QPQ‑coated steel shaft and welded rotor plate, supported by a sealed ball bearing and extended sintered bushing for added stability and durability
• Equipped with a high‑output magnetic pickup and accurately machined reluctor to provide reliable, maintenance‑free trigger signals throughout the RPM range
• Includes a 0.006‑inch oversized bronze gear along with an adjustable slip collar to accommodate altered deck heights, blocks, cylinder heads, or intake combinations

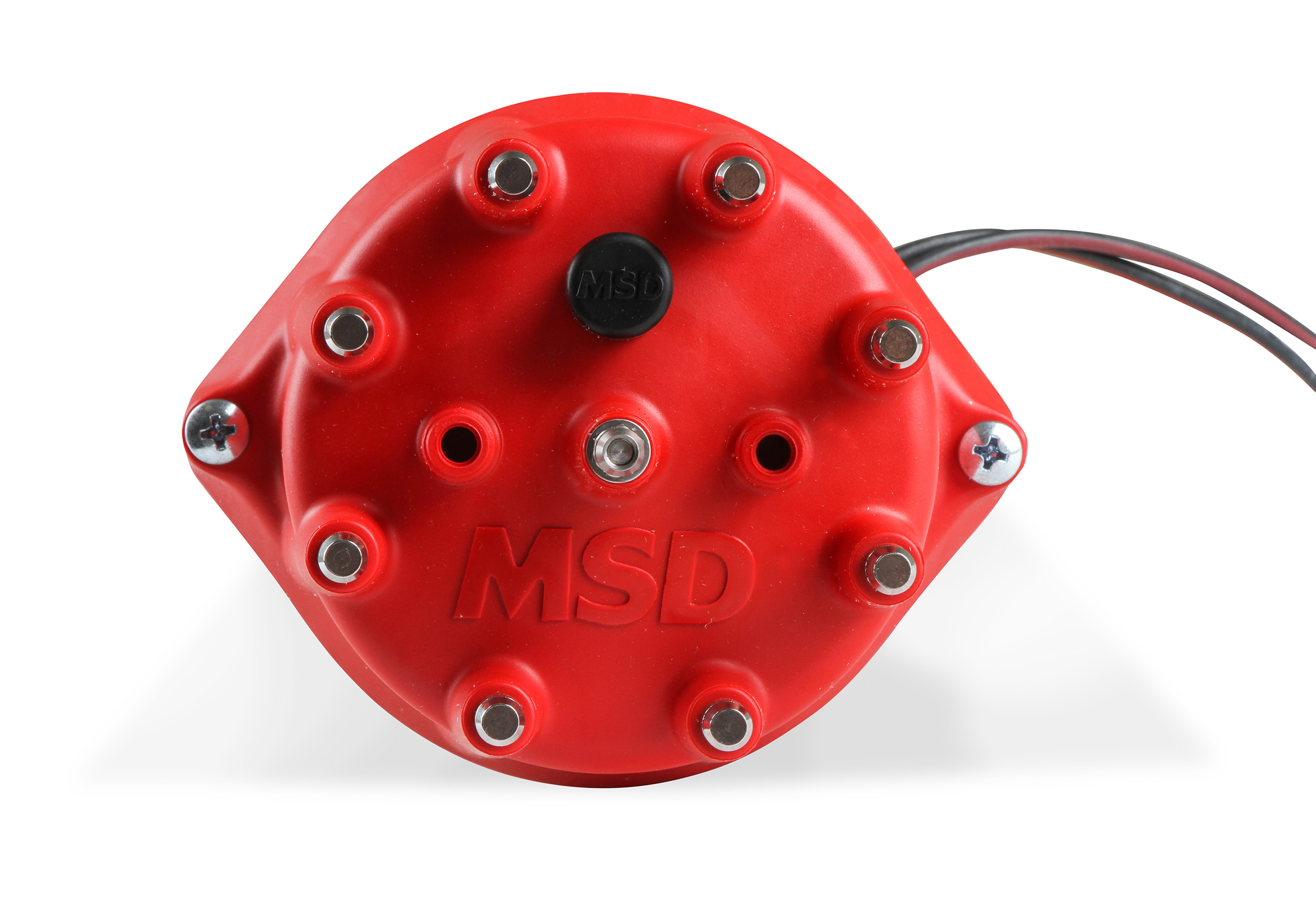

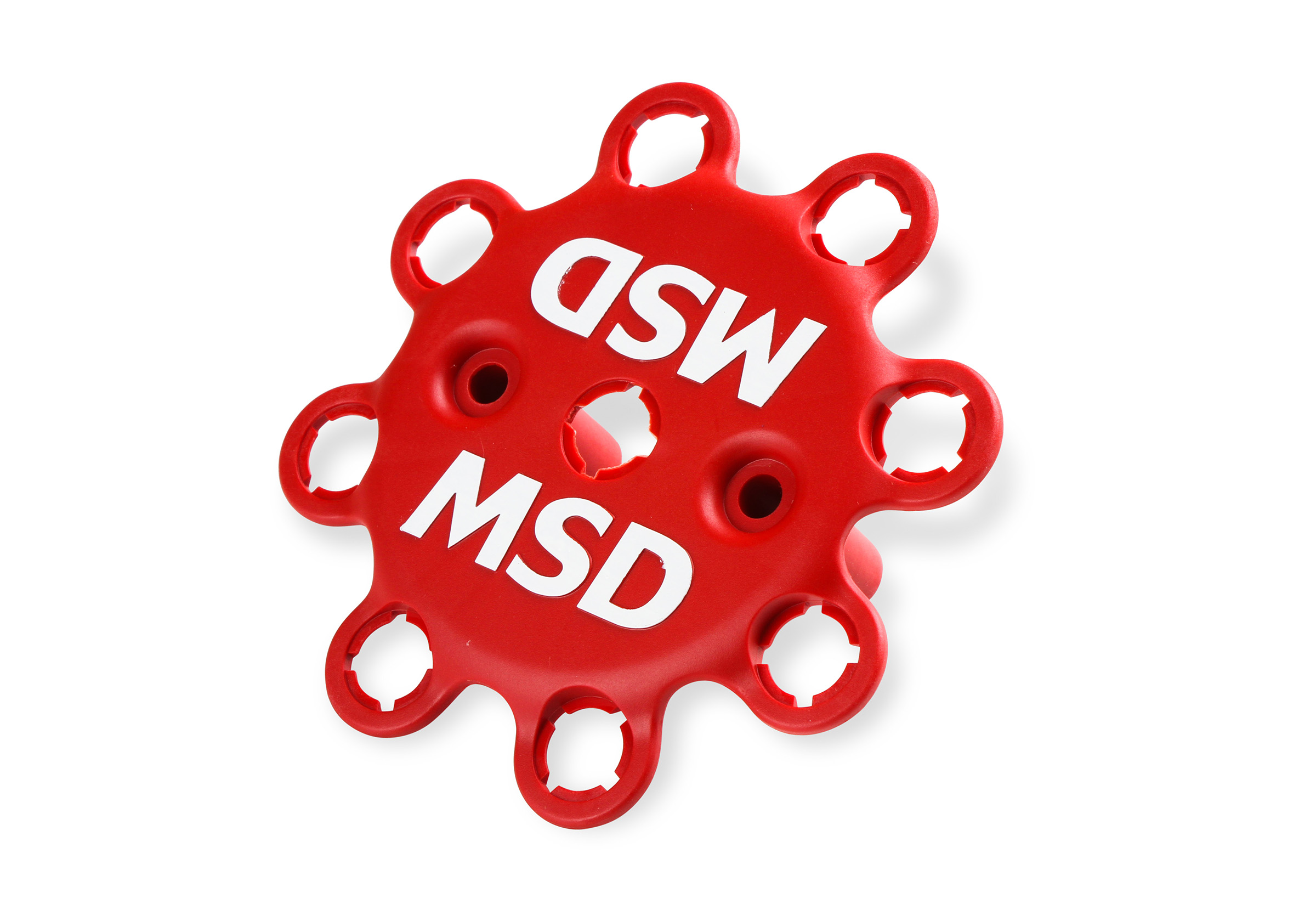

• Comes complete with an HEI‑style cap and rotor; designed for use with MSD 6, 7, 8, or 10 Series Ignition controls and does not support a vacuum advance canister
• Covered by a 1‑Year Warranty

In competitive racing, precise ignition timing and rugged construction are essential for consistent performance round after round. Engines running fixed timing or integrated timing management systems require components specifically designed for track use. The MSD Pro-Billet Distributor is built to meet those dedicated racing demands.

Machined from billet aluminum using CNC processes, this distributor is intended primarily for competition applications and does not incorporate mechanical advance. The rotor plate is securely welded to a large-diameter, QPQ-coated steel shaft, which is supported by a sealed ball bearing at the top and an extended sintered bushing at the bottom for enhanced stability. A high-output magnetic pickup working in conjunction with a precision reluctor delivers accurate trigger signals across the RPM range without the need for periodic adjustment.

The unit includes a 0.006-inch oversized bronze gear and features an adjustable slip-collar mounting flange to accommodate variations in deck height, engine blocks, cylinder heads, or intake manifolds. An HEI-style cap and rotor are supplied. This distributor is designed for use with MSD 6, 7, 8, or 10 Series Ignition controls and does not support a vacuum advance canister. Provisions such as optional O-ring seals can assist with oil control in modified blocks, and an integrated oil passage helps improve lubrication to the distributor and cam gear. Available in multiple color options and for a range of engine applications.

Constructed for high-performance environments where accuracy and durability are critical, the Pro-Billet Distributor provides reliable triggering and solid mechanical strength for serious race builds. Backed by a 1-Year Warranty.
