- The MSD Ultra 6A Ignition Control Box delivers high output capacitive discharge multi spark ignition for reliable power and smooth performance across the entire RPM range
- Produces 135mJ to 150mJ of spark energy with a series of sparks to promote efficient combustion and sharper throttle response
- Sustains strong spark delivery at elevated engine speeds where factory inductive ignitions typically weaken
- Safeguarded against open coil shorted coil and open load scenarios with integrated EMI suppression circuitry
- Compatible with 7 to 28 volt electrical systems featuring 7 volt start capability and supporting up to 15000 RPM at 14.4 volts
- Direct replacement for existing 6201 MSD 6A units designed for 4 6 and 8 cylinder distributor equipped engines and equipped with tach output lead
- Includes a 1-Year Warranty
As the tach climbs and each gear change comes faster, your ignition system has to respond without hesitation. Factory inductive ignitions can lose effectiveness at elevated engine speeds, which can limit performance right when you are asking for more. For enthusiasts who want dependable spark delivery and clean, responsive acceleration across the entire RPM range, the MSD Ultra 6A Ignition Control Box is built to answer the call.

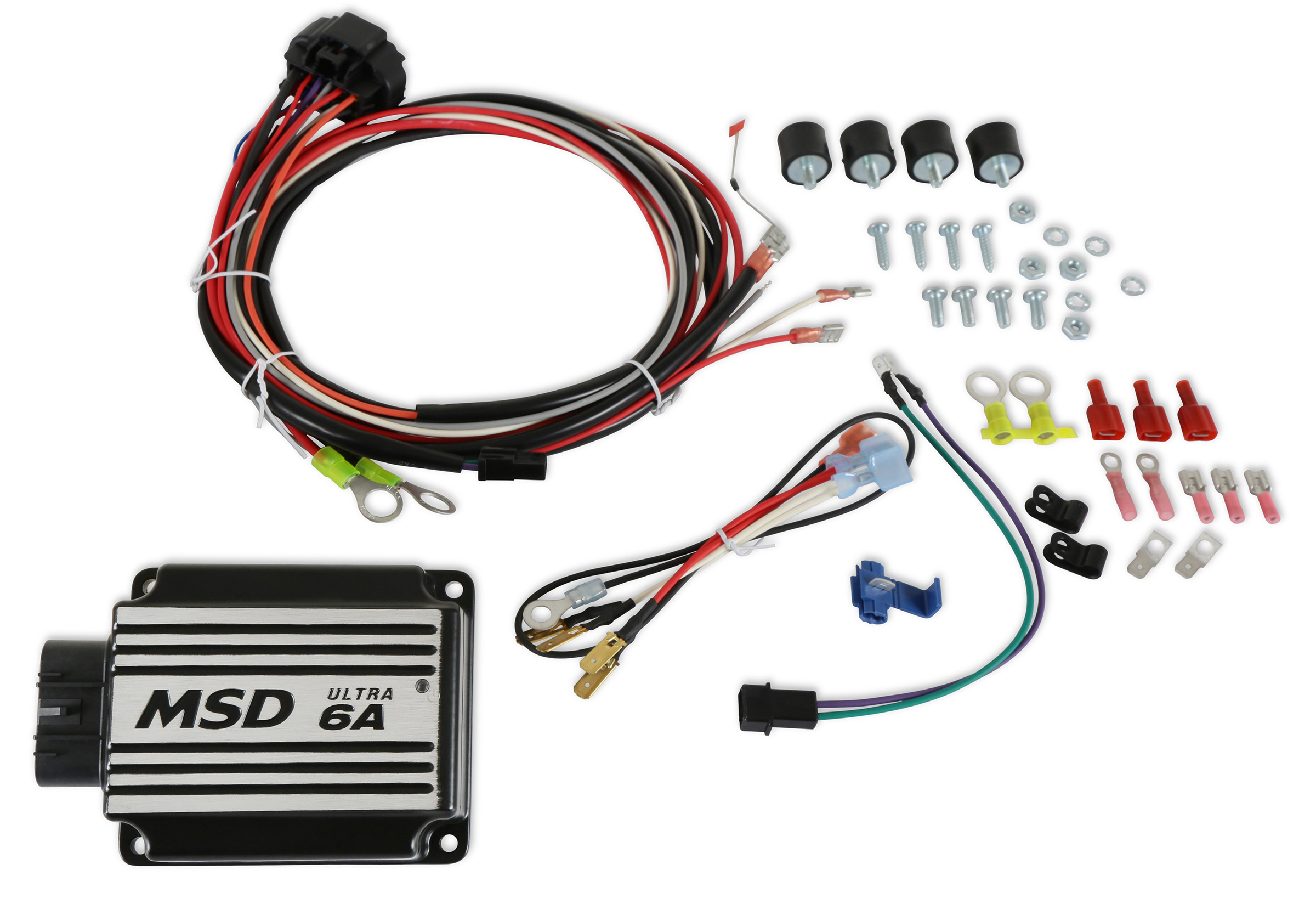

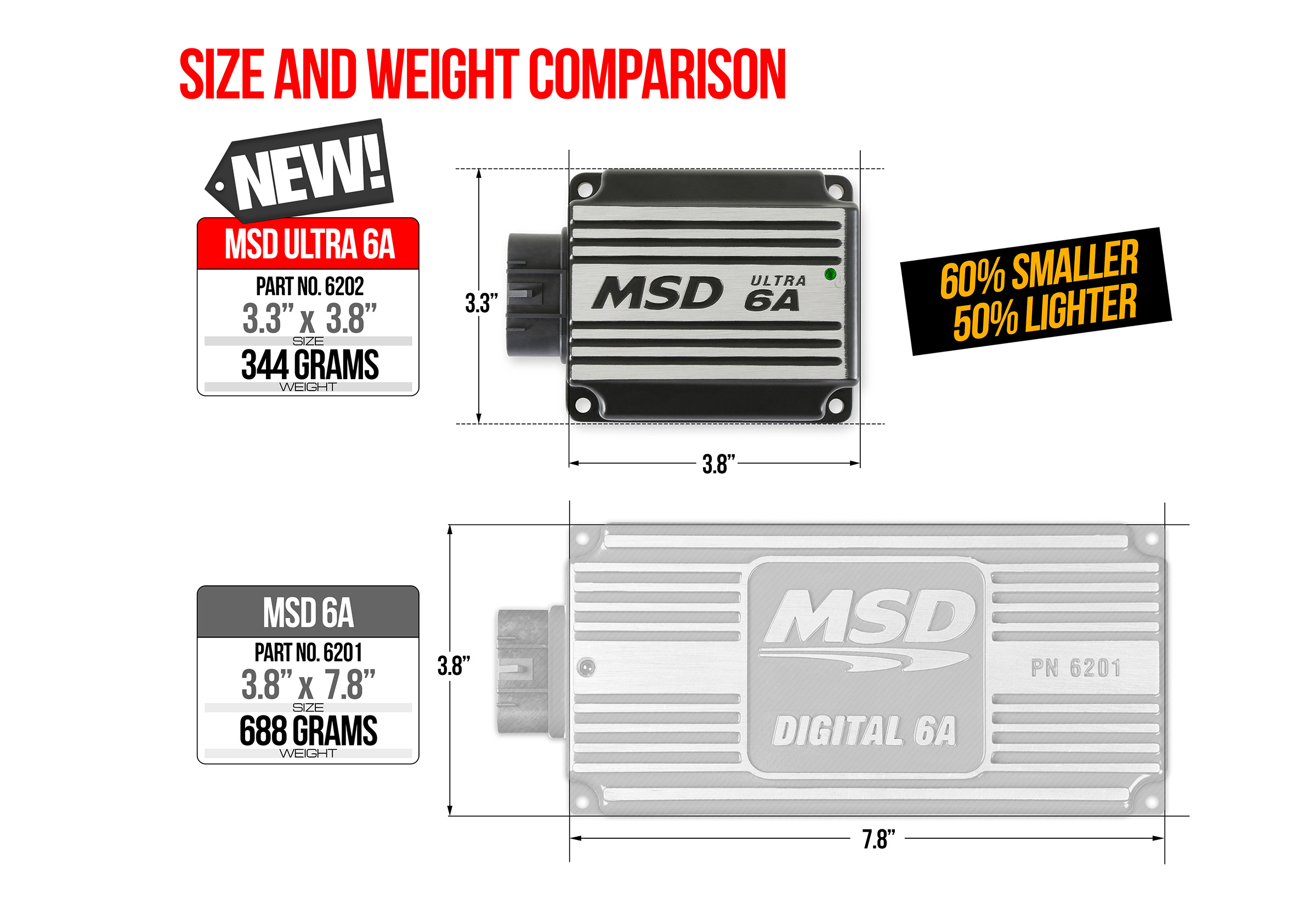

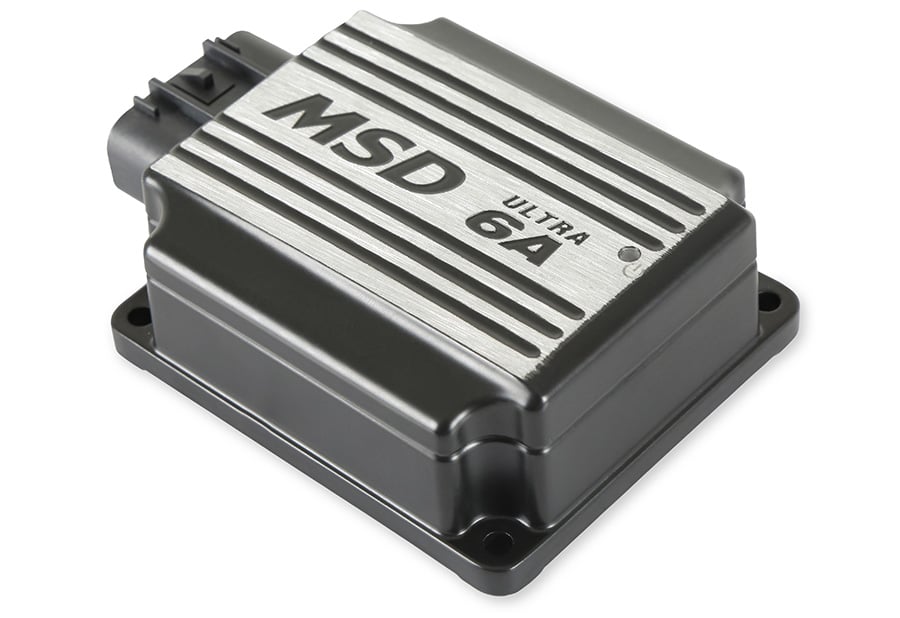

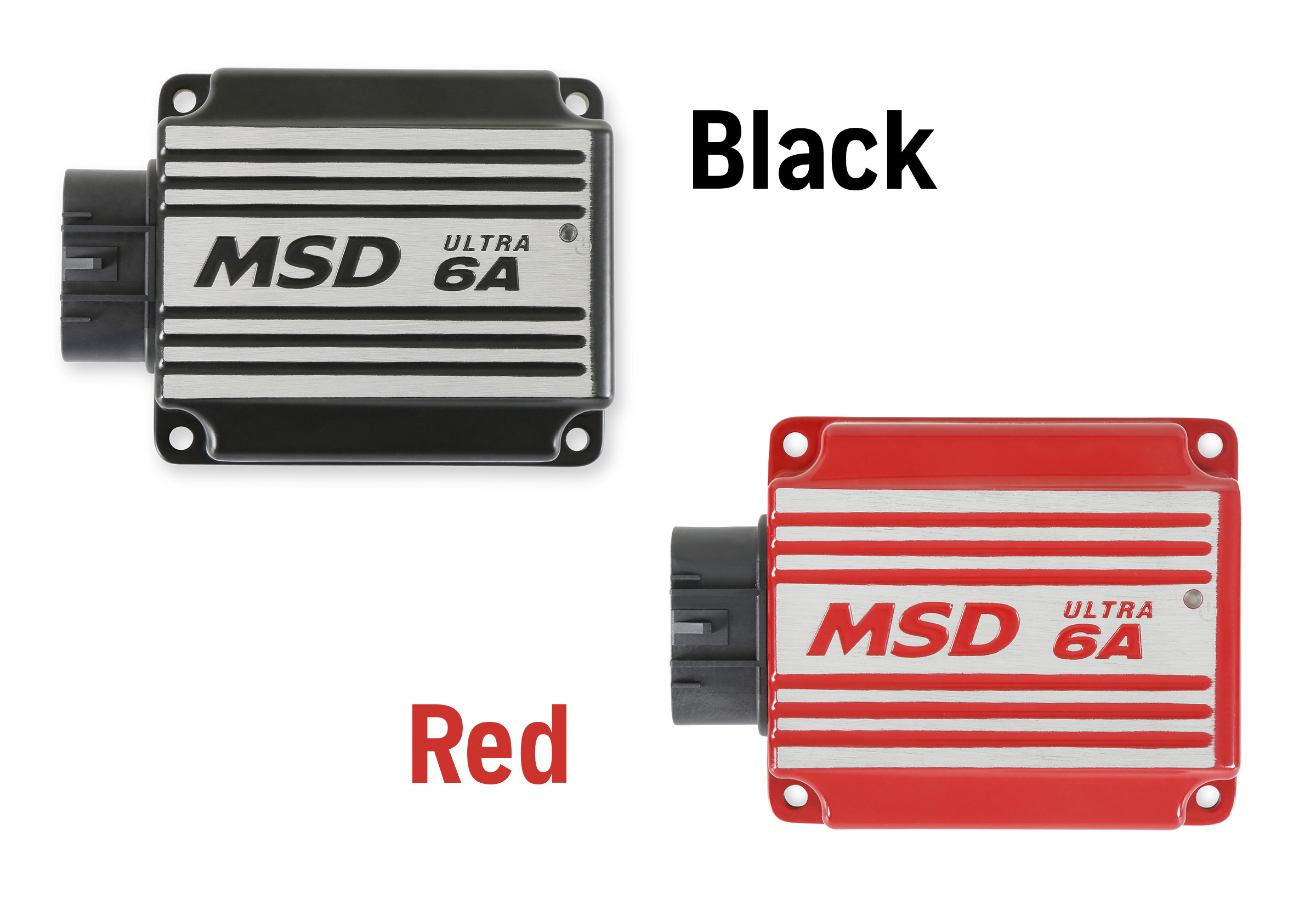

The MSD Ultra 6A Ignition Control Box features a capacitive discharge design that produces multiple high intensity sparks for more complete combustion and steady power output. Where traditional inductive systems can suffer from reduced coil saturation time at high RPM, this unit maintains strong spark energy between 135mJ and 150mJ on every firing event. A high speed controller continuously adjusts output voltage to maintain accurate timing, while advanced filtering shields the circuitry from Electro Magnetic Interference. It is safeguarded against open coil, shorted coil, and open load conditions and operates on most 7 to 28 volt electrical systems, with 12 to 15 volts typical and 7 volt start capability. Current draw is approximately 1.1 amp per 1,000 RPM, and the system supports engine speeds up to 15,000 RPM at 14.4 volts. Designed as a direct upgrade for existing 6201 MSD 6A installations, it connects to points and magnetic pickup distributors, fits 4, 6, and 8 cylinder distributor equipped engines, includes a tach output, and comes in a compact housing that is significantly smaller and lighter than the MSD Digital 6A. It is available in black or red.
Updated internal processing and circuit board design increase efficiency, reduce heat generation, and help deliver maximum spark energy with lower current demand. The result is improved starting, sharper throttle response, and reliable high RPM performance when paired with compatible ignition components. Backed by a 1-Year Warranty.
