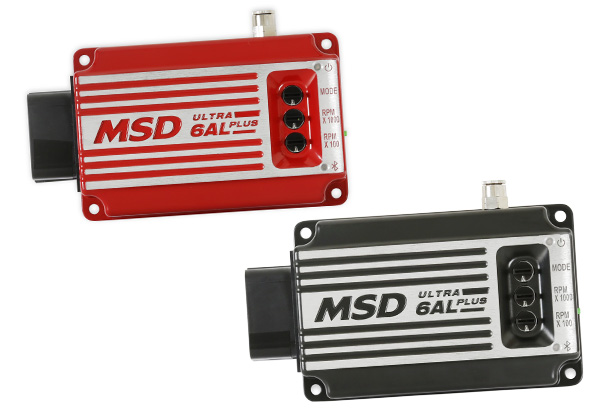

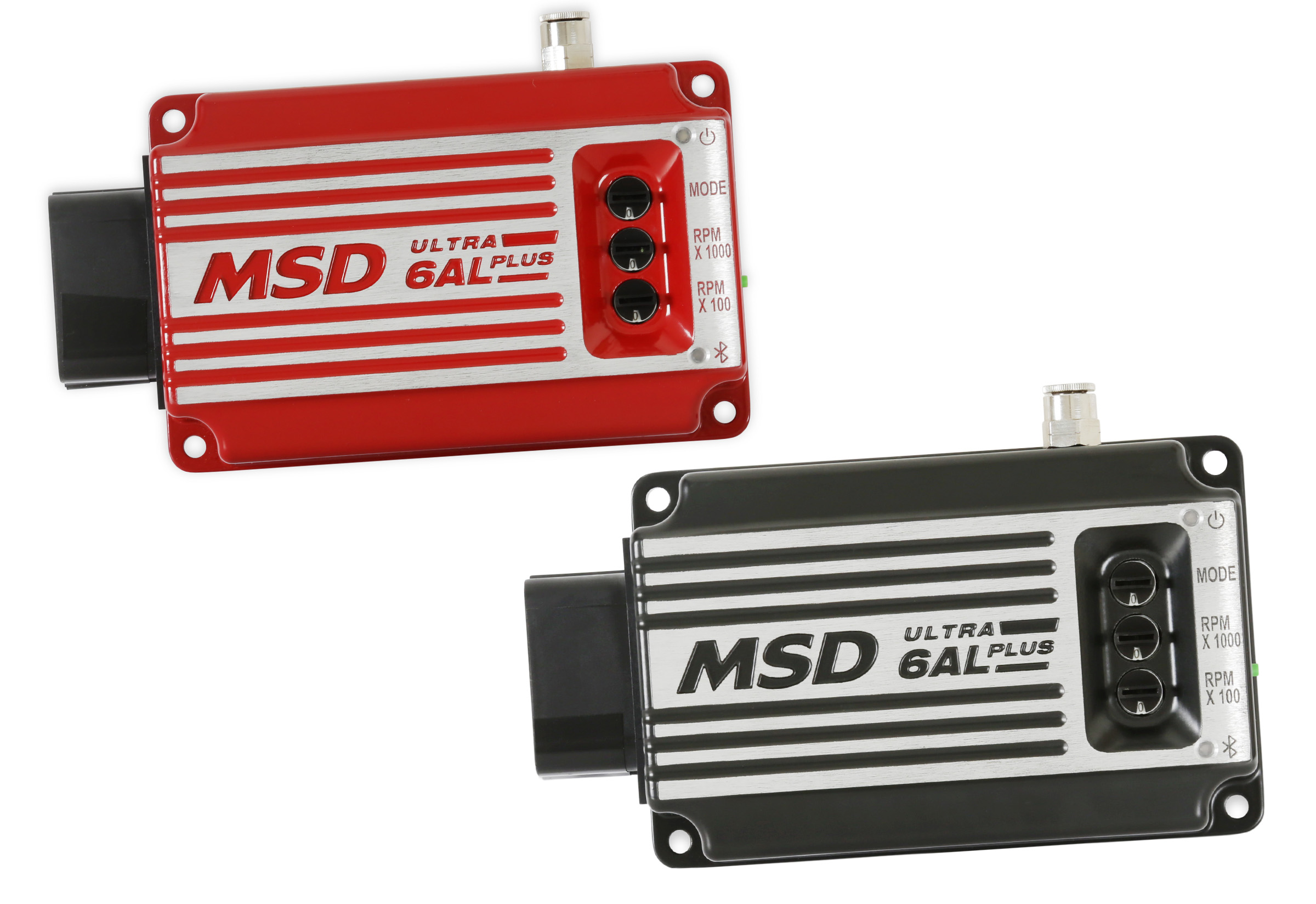

MSD Ultra 6AL Plus Ignition Control Box

• The MSD Ultra 6AL Plus Ignition Control Box provides high output digital capacitive discharge multi spark ignition with integrated timing management and advanced rev limiting for demanding street and race builds
• Delivers up to 45000 volts and 135mJ to 150mJ of steady spark energy throughout the RPM range
• Integrated three stage RPM limiter with adjustable launch burnout and top end limits configurable by rotary controls or Bluetooth mobile app service available only in the USA and Canada
• Adjustable start retard and step retard features allowing up to 35 degrees of total timing adjustment
• Boost referenced timing control up to 400 kPA supported by an internal 4 BAR MAP sensor with programmable 2D and 3D timing maps via app or USB
• Designed for 4 6 and 8 cylinder engines compatible with points magnetic pickup Hall effect and crank trigger distributors operating on 7 to 28 volt systems up to 15000 RPM
• Covered by a 1-Year Warranty

Serious performance demands an ignition system that reacts instantly and fires with authority every time you hit the throttle. From hard launches at the strip to pulling cleanly through the top end, dependable spark delivery and accurate timing control are critical to staying competitive. Engineered to pack advanced features into a compact housing, the MSD Ultra 6AL Plus Ignition Control Box brings race ready capability to street and track builds alike.

The MSD Ultra 6AL Plus Ignition Control Box is a digital capacitive discharge, multi spark ignition system capable of producing up to 45000 volts with consistent spark energy ranging from 135mJ to 150mJ throughout the RPM range. A built in tri step RPM limiter manages launch, burnout, and maximum race RPM settings, adjustable via rotary dials or through the MSD Ultra 6AL app, with Bluetooth functionality supported only within the USA and Canada. It also features programmable step retard with adjustable on ramp time, off delay, off ramp time, and RPM activation points, plus selectable start retard settings of 0, 10, or 20 degrees and up to 35 degrees of maximum programmable retard. An internal 4 BAR sensor enables boost based timing control up to 400 kPA, and users can create timing curves in 2D plots or 3D tables through the mobile app or MSDView software using the integrated USB connection. Compatible with 4, 6, and 8 cylinder engines, the unit works with points, magnetic pickup, Hall effect, or crank trigger distributors, operates on most 7 to 28 volt electrical systems, and supports engine speeds up to 15000 RPM at 14.4 volts. Protection against open or shorted coil conditions, high efficiency design for reduced heat and current draw, included wiring harness, tach output, and availability in black or red round out its feature set.

Delivering multiple sparks and extended spark duration across 18 degrees of crankshaft rotation, this ignition control box provides the precise management needed for demanding naturally aspirated and moderately boosted combinations. Drivers can expect improved throttle response, smoother idle quality, and more consistent performance under load. Backed by a 1-Year Warranty.
